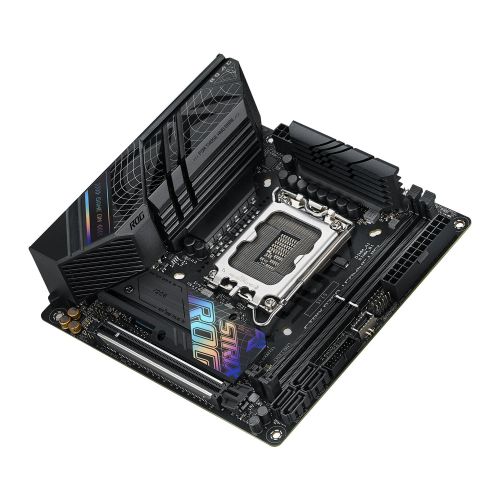

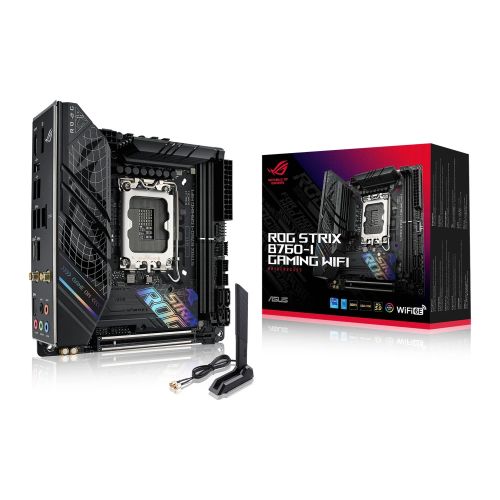

Asus ROG STRIX B760-I GAMING WIFI, Intel B760, 1700, Mini ITX, 2 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2

+ click images to enlarge

Supports Intel 14th gen CPUs out of the box
No BIOS update needed

Stock Code

AUMBB760ISTWIV2

Manufacturer

ASUS

Manufacturer Code

90MB1D90-M1EAY0

EAN Number

4711081997658

Printable Version

19 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

Up to 7600(OC)

Maximum Memory

96GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16

Storage

4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

LAN

2.5GB LAN

Audio

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

USB Ports Supported

1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen1 Type-C (at back)
3 x USB 3.2 Gen1 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
5 x USB 2.0 (3 at back, 2 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header

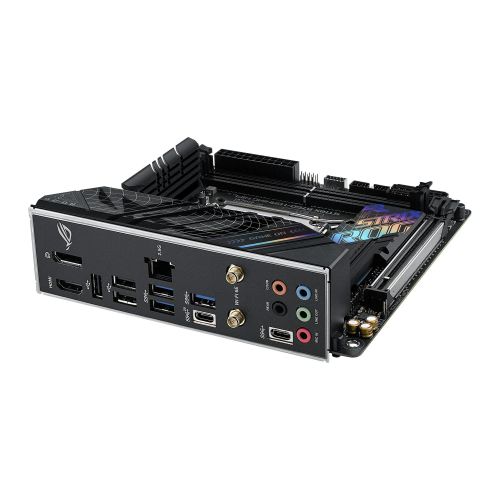

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C
4 x USB 3.2 Gen1 (3 Type-A, 1 Type-C)
3 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin Chasis Fan
1 x 4-pin AIO Pump
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
1 x USB 2.0
1 x Addressable Gen2
1 x Aura RGB

1 x Clear CMOS
1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x 10-1 pin System Panel
1 x Thermal Sensor

Accessories

2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
1 x M.2 bracket
1 x ROG key chain

1 x ROG STRIX stickers
1 x ROG STRIX thank you card
1 x User manual

Additional Features

See Overview

Package Type

Retail

Package Weight

1.8900 kg

Warranty

3 Years
