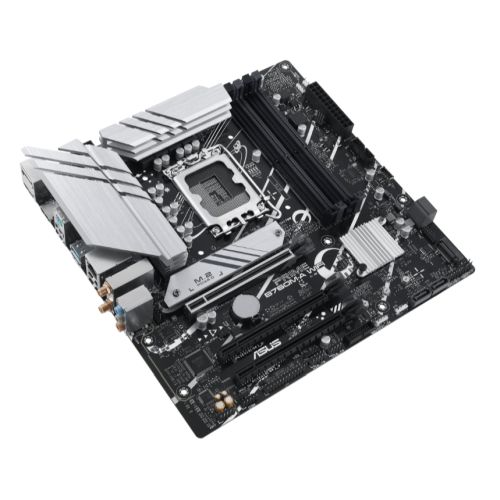

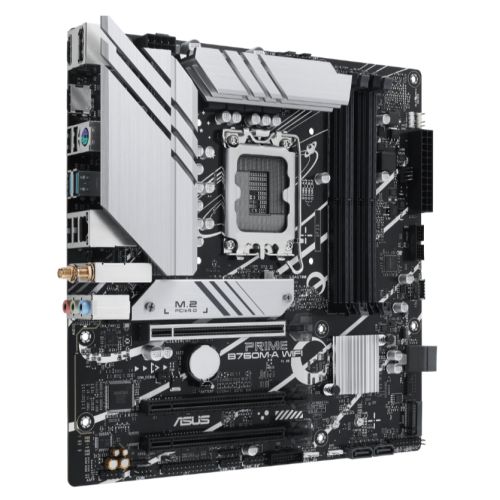

Asus PRIME B760M-A WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, 2 HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe4, 2x M.2

+ click images to enlarge

Supports Intel 14th gen CPUs out of the box
No BIOS update needed

Stock Code

AUMBB760MAPRWIV2

Manufacturer

ASUS

Manufacturer Code

90MB1EL0-M1EAY0

EAN Number

4711387131435

Printable Version

176 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 7200+(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

2 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x16 (supports x1 mode)

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

2 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (at mid-board)
9 x USB 2.0 (4 at back, 5 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen1 Header

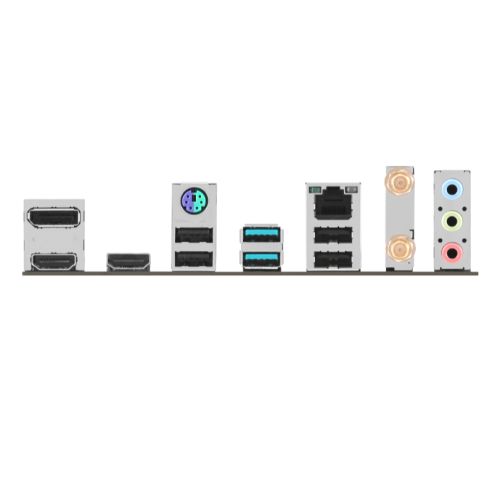

Back Panel I/O Ports

2 x USB 3.2 Gen2 Type-A
4 x USB 2.0
1 x DisplayPort
2 x HDMITM
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
2 x USB 3.2 Gen1
1 x USB 3.2 Gen1 Type-C
2 x USB 2.0
1 x USB 2.0
3 x Addressable Gen2

1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x LPT
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel

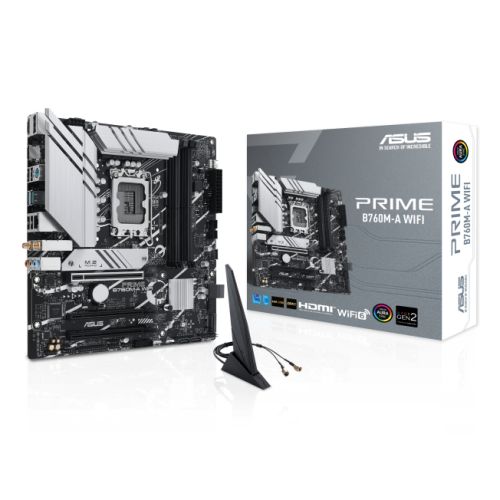

Accessories

2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.6000 kg

Warranty

3 Years
