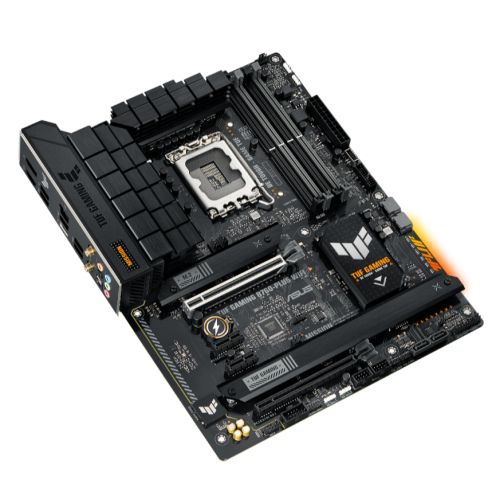

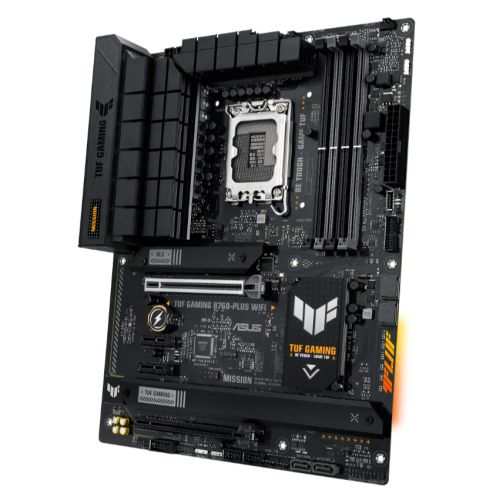

Asus TUF GAMING B760-PLUS WIFI, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe5, 3x M.2, RGB

+ click images to enlarge

Supports Intel 14th gen CPUs out of the box
No BIOS update needed

Stock Code

AUMBB760PLTUFWIV2

Manufacturer

ASUS

Manufacturer Code

90MB1ER0-M1EAY0

EAN Number

4711387095119

Printable Version

49 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR5, Dual Channel

RAM Slots

4 x DIMM

RAM Speeds

Up to 7200(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (supports x4 mode)
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
3 x USB 3.2 Gen1 Type-A
1 x USB 2.0

Front:
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

Front Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
3 x USB 3.2 Gen1 Type-A
1 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0

3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)

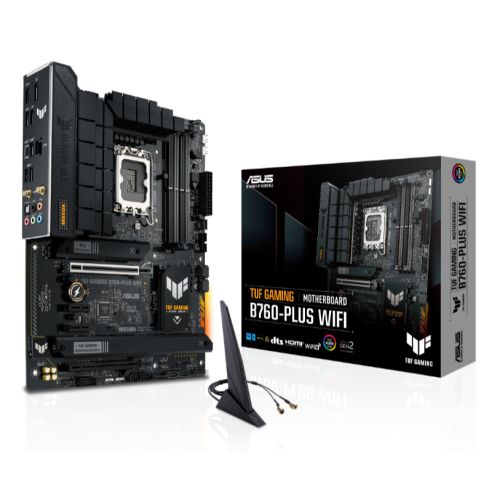

Accessories

2 x SATA 6Gb/s cables

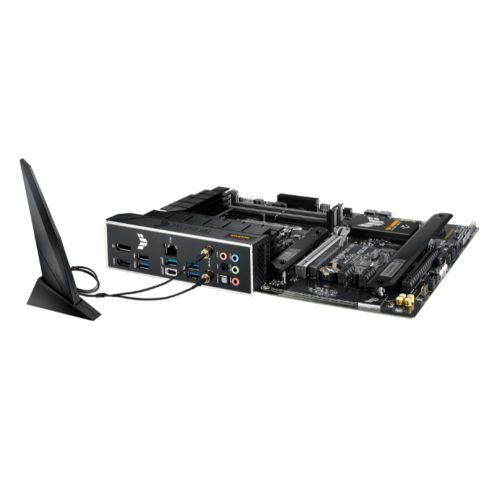

1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.7800 kg

Warranty

3 Years
