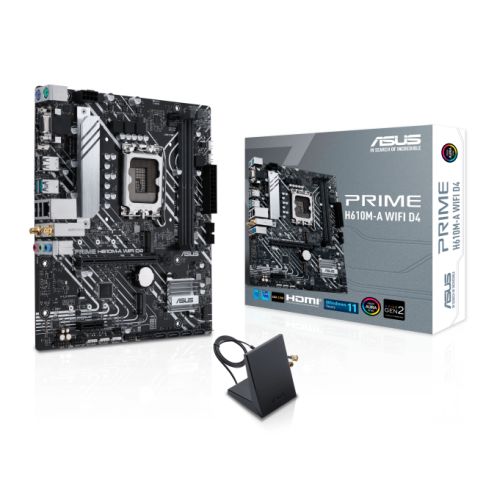

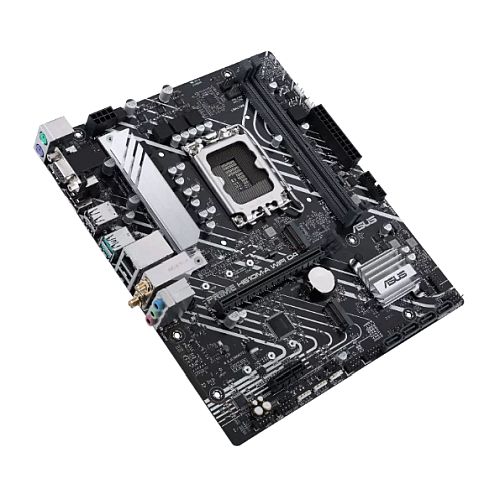

Asus PRIME H610M-A WIFI D4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, Wi-Fi, PCIe4, 2x M.2

+ click images to enlarge

NOTE:
Intel 13th & 14th gen CPUs may require a BIOS update

Stock Code

AUMBH610MAPRWID4-RET

Manufacturer

ASUS

Manufacturer Code

90MB1C80-M0EAY0

EAN Number

4711081758211

Printable Version

404 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

Up to 3200MHz

Maximum Memory

64GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

Wireless

Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.0

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

2 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 Type-A (at mid-board)
7 x USB 2.0 (4 at back, 3 at mid-board)

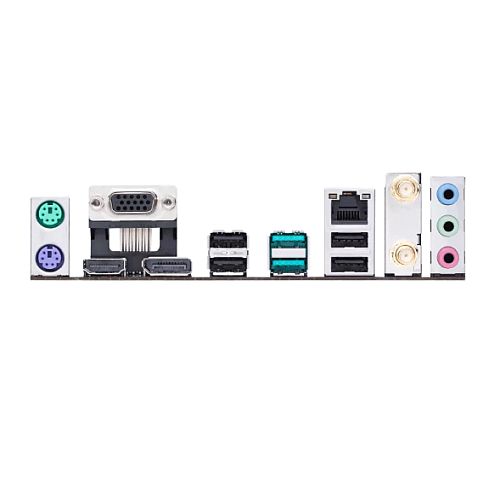

Back Panel I/O Ports

2 x USB 3.2 Gen2 (Type-A)
4 x USB 2.0 (Type-A)
1 x DisplayPort
1 x HDMI
1 x D-Sub
1 x Wi-Fi Module
1 x Intel 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x Front Audio

1 x COM Port
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
1 x Support DVD
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.1100 kg

Warranty

3 Years
