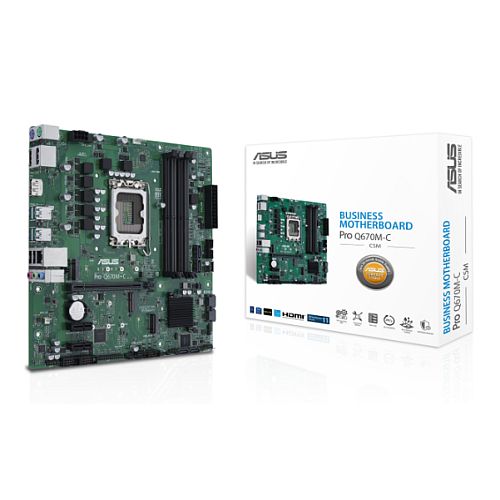

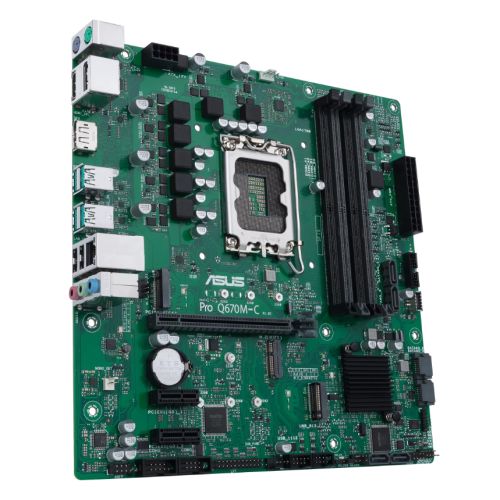

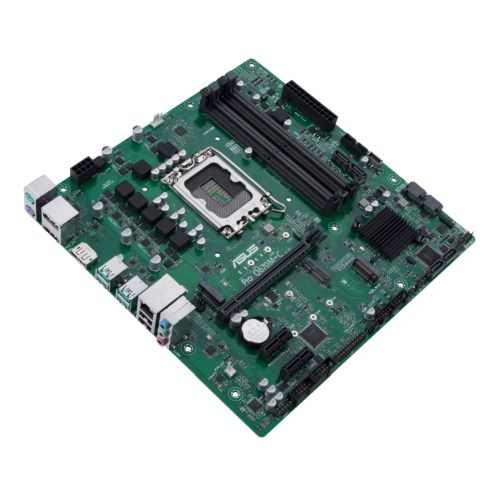

Asus PRO Q670M-C-CSM - Corporate Stable Model, Intel Q670, 1700, Micro ATX, 4 DDR5, HDMI, 2 DP, GB LAN, PCIe4, 2x M.2

+ click images to enlarge

Supports Intel 14th gen CPUs out of the box
No BIOS update needed

Stock Code

AUMBQ670MCCSMPROV2

Manufacturer

ASUS

Manufacturer Code

90MB19E0-M2EAYC

EAN Number

4711081518389

Printable Version

5 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel Q670

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 4800 MHz

Maximum Memory

192GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0/3.0 x16
2 x PCIe 3.0 x1

Storage

6 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID

Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

4 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x USB 3.2 Gen1 Type-C front panel connector

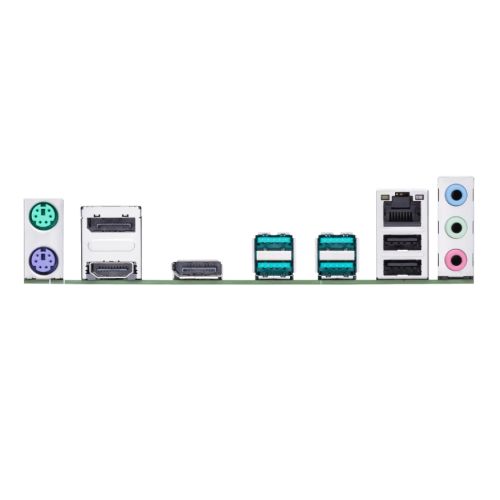

Back Panel I/O Ports

4 x USB 3.2 Gen2 Type-A
2 x USB 2.0
2 x DisplayPort
1 x HDMI
3 x Audio jacks
1 x Intel 1Gb Ethernet
1 x PS/2 keyboard
1 x PS/2 mouse

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen1 Front Panel Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrude
2 x COM Port

1 x Front Panel Audio
1 x COM debug
1 x DIS ME jumper
1 x LPT header
1 x Mono-out (with Amp IC)
1 x M.2 (Key E)
1 x Speaker
1 x 10-1 System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
1 x Support DVD
1 x ACC Express Activation Key Card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.1000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
