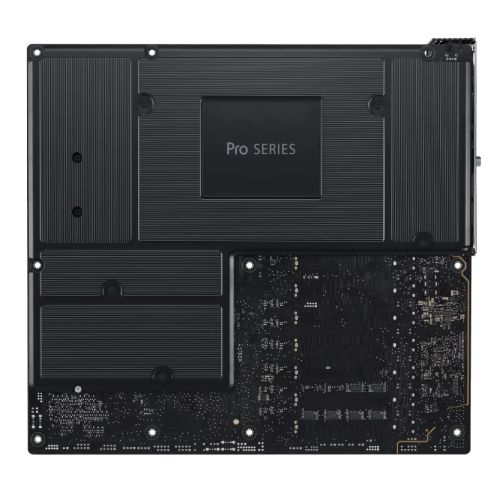

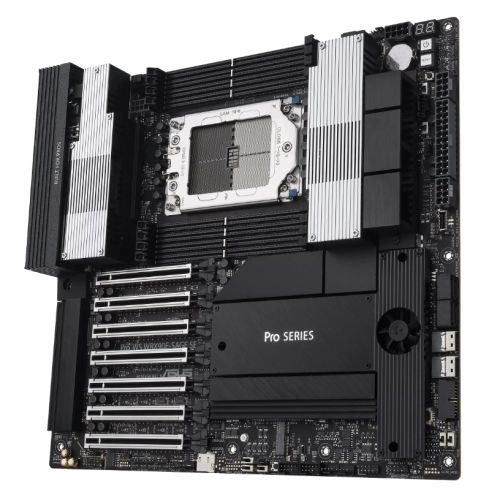

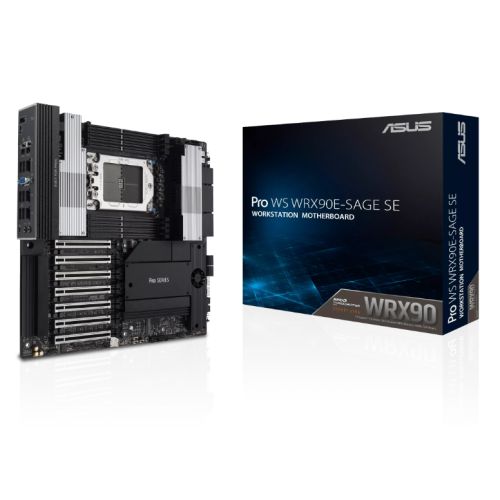

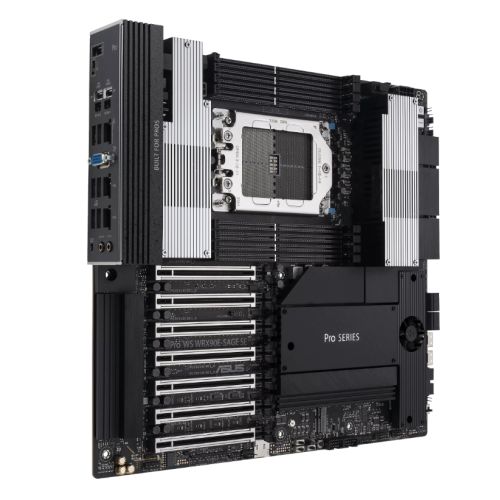

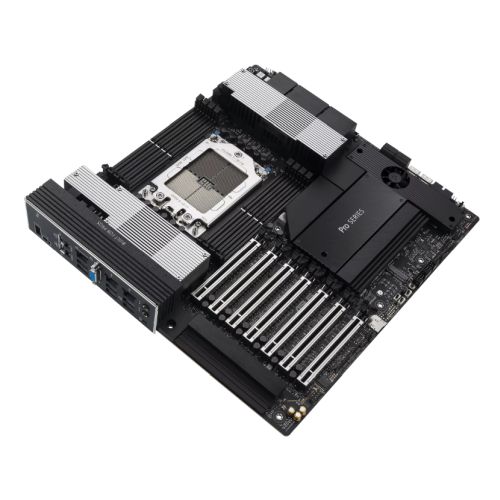

Asus PRO WS WRX90E-SAGE SE, Workstation, AMD WRX90, sTR5, EEB, 8 DDR5 ECC, Dual 10G LAN, SlimSAS, 7x PCIe5 x16, 4x M.2

+ click images to enlarge

Stock Code

AUMBWRX90EWSPROSAGESE

Manufacturer

ASUS

Manufacturer Code

90MB1FW0-M0EAY0

EAN Number

4711387441145

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Motherboard Type

Server / Workstation

Form Factor

CEB

Socket

AMD sTR5

Chipset

AMD WRX90

CPU Support

Click here for CPU support

RAM Technology

DDR5, ECC Registered Memory
8 Channel

RAM Slots

8 x DIMM

RAM Speeds

Varies depending on CPU and memory configuration

Maximum Memory

2048GB

Graphics Ports

1 x VGA port from AST2600
2 x USB 40Gbps (USB4) support USB Type-C display outputs

PCI/PCI Express

6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)

Storage

4 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
1 x M.2 (2242/2260/2280) - PCIe 5.0 x4
1 x M.2 (2242/2260/2280) - PCIe 5.0 x4
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10

LAN

Dual 10G LAN & Mgmt LAN Port

Audio

Realtek ALC1220P Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB4 40Gbps Type-C w/ ASMedia ASM4242 controller
6 x USB 10Gbps Type-A
1 x USB 2.0

Front:
1 x USB 20Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0

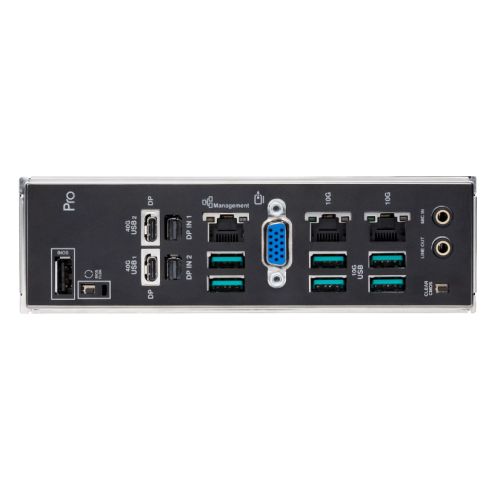

Back Panel I/O Ports

2 x USB4 40Gbps Type-C w/ ASMedia ASM4242 controller
6 x USB 10Gbps Type-A
1 x USB 2.0
1 x VGA
2 x mini DisplayPort IN
1 x Intel dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet
2 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x W_PUMP+
5 x 4-pin Chassis Fan
2 x 4-pin VRM Fan (VRM FAN onboard)
1 x 4-pin M.2 Fan (M.2 FAN onboard)
1 x 24-pin Main
2 x 8-pin +12V
2 x 8-pin PCIe to CPU
2 x 8-pin PCIe
4 x M.2 (Key M)
4 x SATA 6Gb/s

2 x SlimSAS
1 x USB 20Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0
1 x Chassis intrusion
1 x COM port
1 x FlexKey button
1 x Front panel audio
1 x LN2 mode jumper
1 x M.2 (Key E)

7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM (14-1 pin)
1 x Start button
1 x 10-1 pin system panel
1 x Thermal sensor

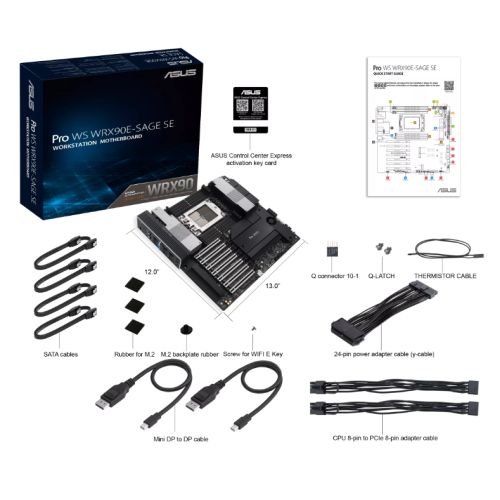

Accessories

2 x PCIe 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)
2 x Mini DisplayPort cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x Q-connector
1 x M.2 Q-Latch package
1 x AMI license sticker
4 x M.2 rubber packages
1 x Screw package for M.2 Key E
1 x ACC Express Activation Key Card

Additional Features

See Overview

Package Type

Retail

Package Weight

5.2000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
