Components > Cases

Be Quiet! Pure Base 501 Airflow Window Gaming Case, ATX w/ Glass Side, Compact Design, 2 Pure Wings 3 Fans, High Airflow Front & Top, USB-C, Black

+ click images to enlarge

Stock Code

CAA-BQPB501AIRWIN-BLK

Manufacturer

BEQUIET

Manufacturer Code

BGW74

EAN Number

4260052191828

Printable Version

18 Available

You must be logged in to view pricing and place orders

Form Factor

ATX

Power Supply Wattage

No PSU

Motherboard Support

ATX, Micro ATX, Mini ITX

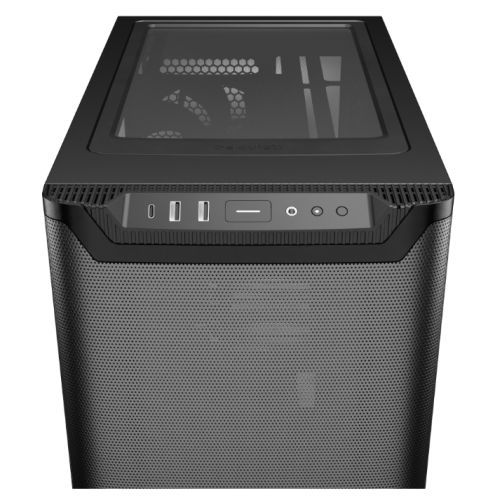

Connectors / Controls

1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Type-A
Mic + Audio

Drive Bays

2 x 3.5"
5 x 2.5"

Expansion Slots

7 x Expansion Slots

Cooling System

Included:
Front: 1 x Pure Wings 3 140mm PWM Fan
Rear: 1 x Pure Wings 3 140mm PWM Fan

Fan Mounts:
Top: 2 x 140 / 2 x 120 mm
Front: 2 x 140 / 3 x 120 mm
Side: None
Rear: 1 x 140 / 1 x 120 mm
Bottom: None
PSU shroud: None

Radiator Support:
Front: Up to 360 mm
Top: Up to 240 mm
Side: None
Rear: Up to 140 mm
Bottom: None

Colour

Black

Material

Top Cover: Steel
Front Panel: ABS
Side Panel: Steel
Side Panel Window: Glass
Stands: ABS

Compatibility

GPU Max Height:
368 mm

CPU Cooler Max Height:
178 mm

PSU Max Length:
180 mm

Weight/Dimensions

7.2 kg

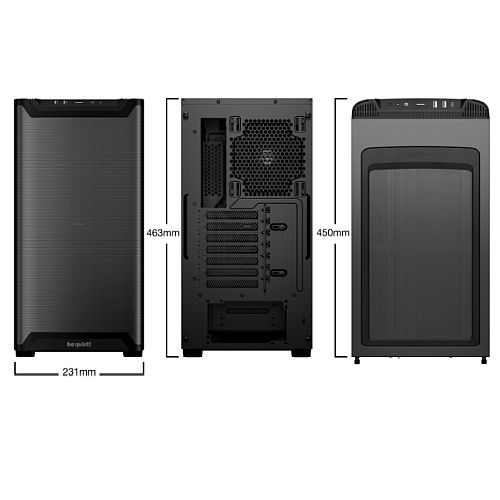

Excl. stands (LxWxH): 450 x 231 x 449 mm
Incl. stands (LxWxH): 450 x 231 x 463 mm

Additional Features

Compact design
High airflow intake front panel and top cover
Optional vertical graphics card installation
Comfortable cable management with clever cable routing

See Overview for more details

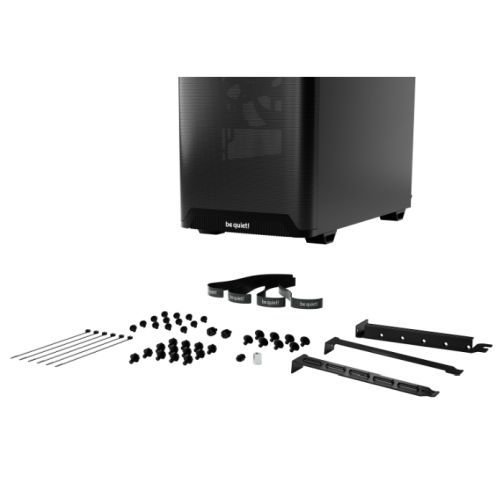

Accessories

Screw set (Drives/Motherboard)
1 x Additional standoff
12 x Cable ties

Package Weight

To be confirmed

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
