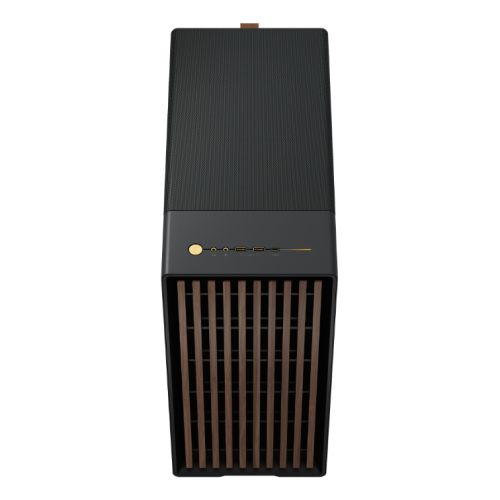

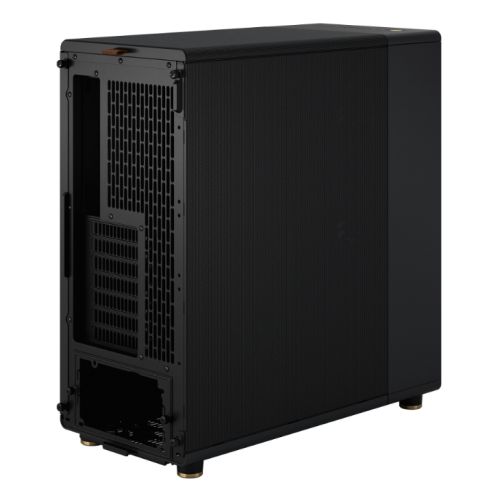

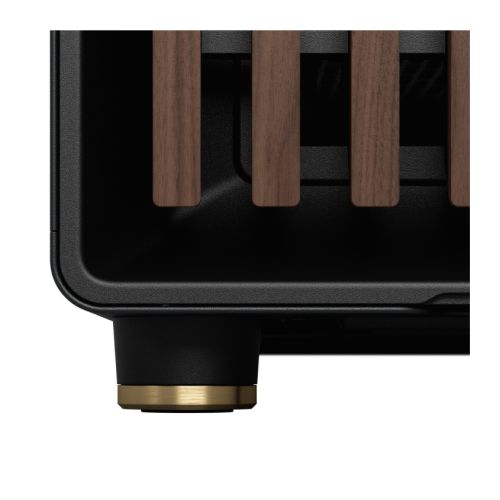

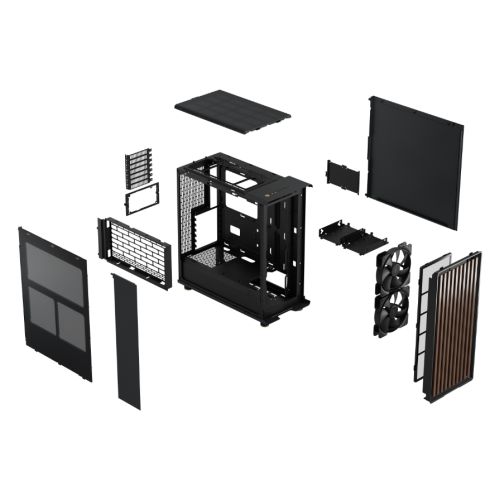

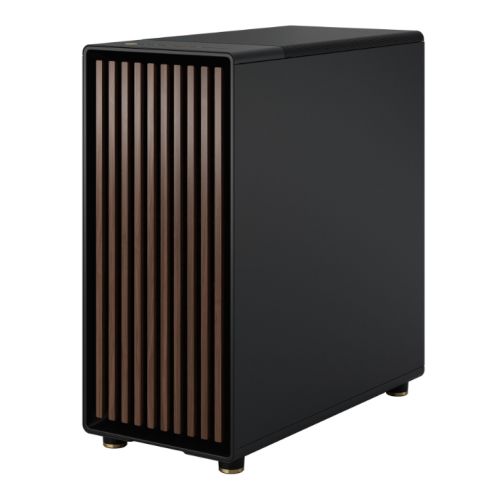

Fractal Design North Charcoal Black (Black Solid) Case, ATX, Fine Mesh Side, 2 Fans, USB-C, Walnut Front

+ click images to enlarge

Stock Code

CAA-FRNOR

Manufacturer

FRACTAL

Manufacturer Code

FD-C-NOR1C-01

EAN Number

7340172704706

Printable Version

12 Available

You must be logged in to view pricing and place orders

Form Factor

ATX

Power Supply Wattage

No PSU

Motherboard Support

ATX, Micro ATX, Mini ITX

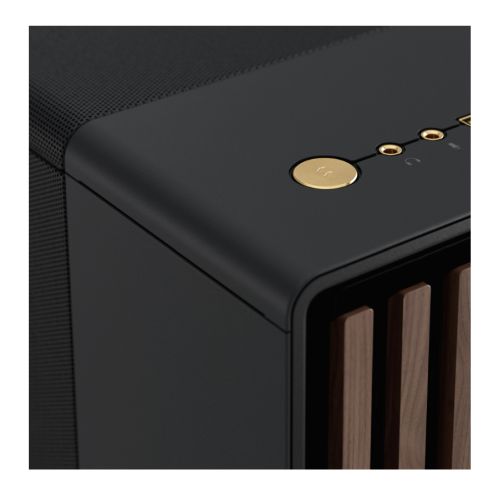

Connectors / Controls

1 x USB 3.1 Gen2 Type-C
2 x USB 3.0
Audio & Mic

Drive Bays

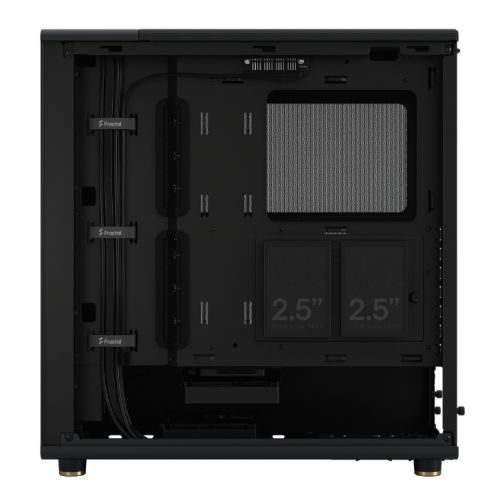

Dedicated 2.5" drive mounts: 2
Combined 3.5/2.5" drive mounts: 2 (included)

Expansion Slots

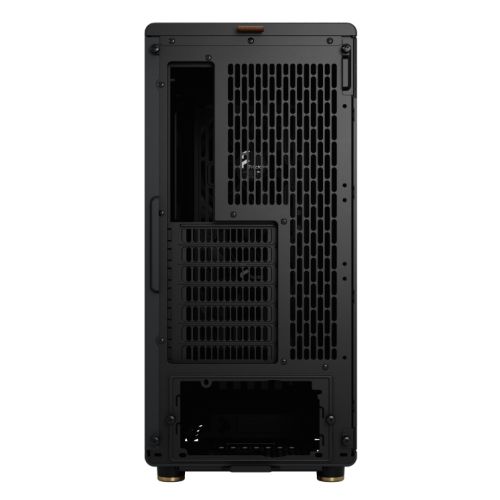

7 expansion slots

Cooling System

Included Fans:
Front: 2 x Aspect 140mm PWM fans

Fan Mounts:
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 140 mm
Rear: 1 x 120 mm
Side Bracket: 2 x 120 / 140 mm

Radiator options:
Front: Up to 360 mm
Top: Up to 240 mm
Rear: Up to 120 mm*
Bottom: N/A

*If you’re using a rear radiator the fan bracket can only be slotted into the bottom position

Colour

Black

Material

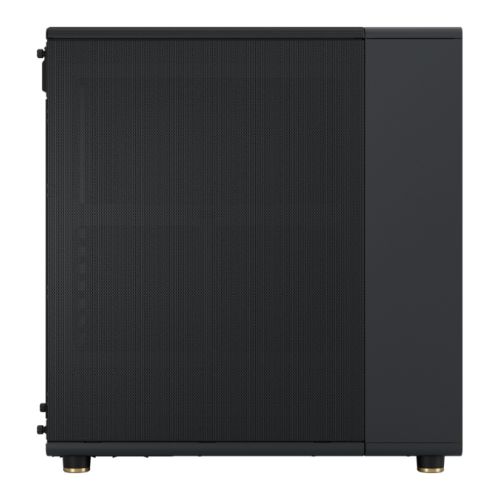

Left side panel: Mesh

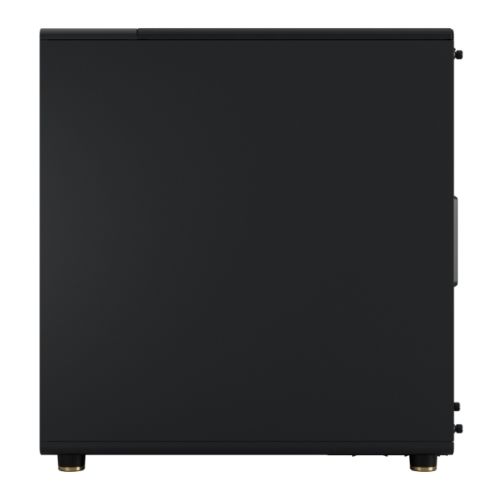

Right side panel: Steel

Compatibility

GPU max length:
355 mm with front fan mounted
300 mm with 360 mm front mounted radiator

CPU cooler max height:
145 mm with Fan Bracket / 170 mm without

PSU max length:
1 HDD Tray: 255 mm
2 HDD Trays: 155 mm

Weight/Dimensions

7.6 kg
(LxWxH) 447 x 215 x 469 mm
w/o feet/protrusions/screws: 433.5 x 215 x 450 mm

Additional Features

See Overview / Video

Accessories

Accessory Box
Fan Bracket Accessory Box
User Manual

Package Weight

9.7000 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
