Components > Cases

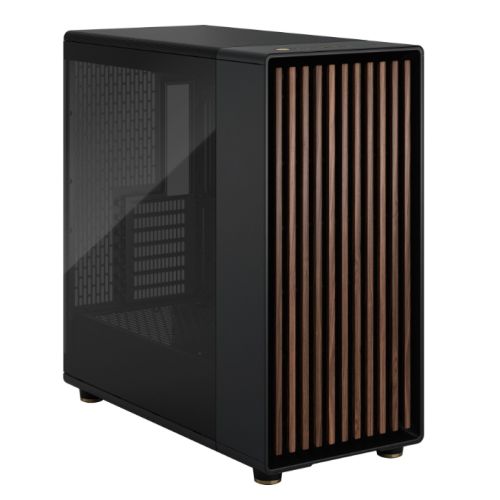

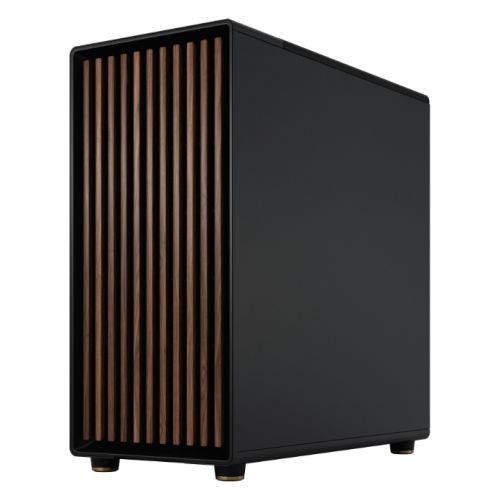

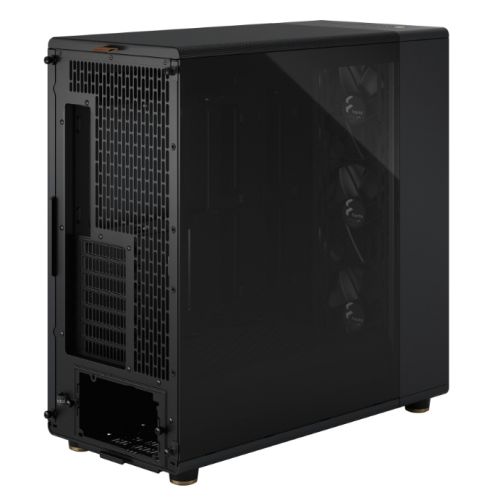

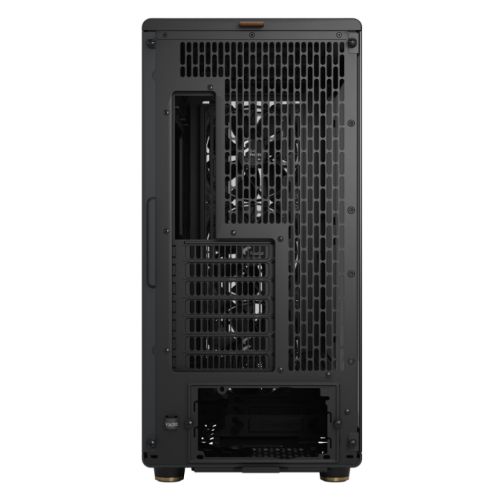

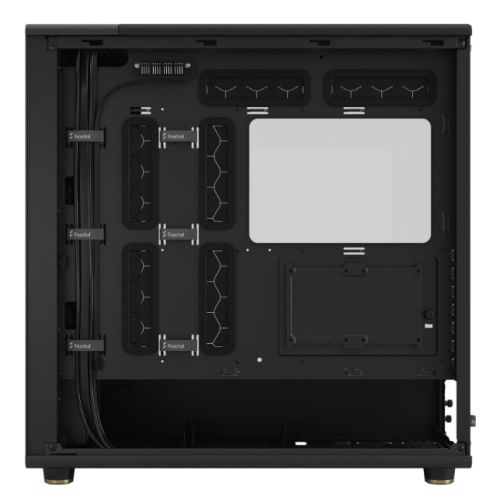

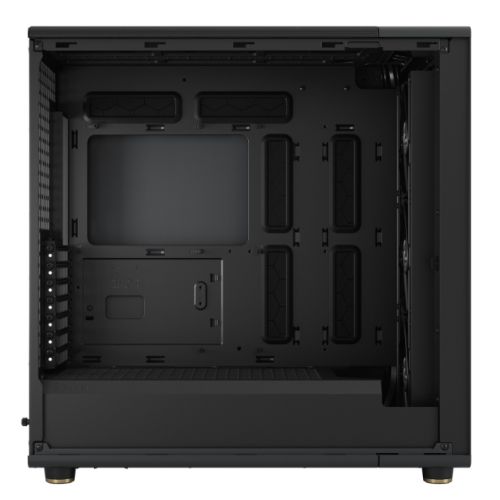

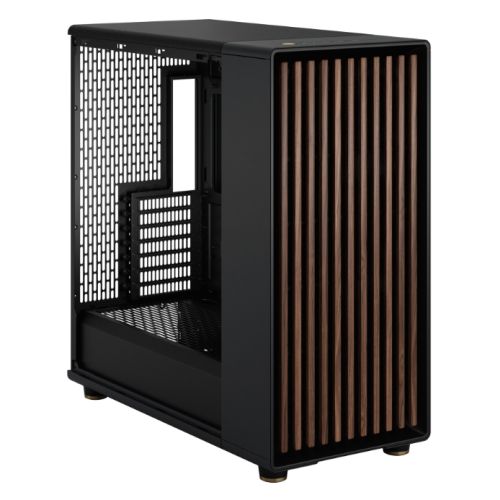

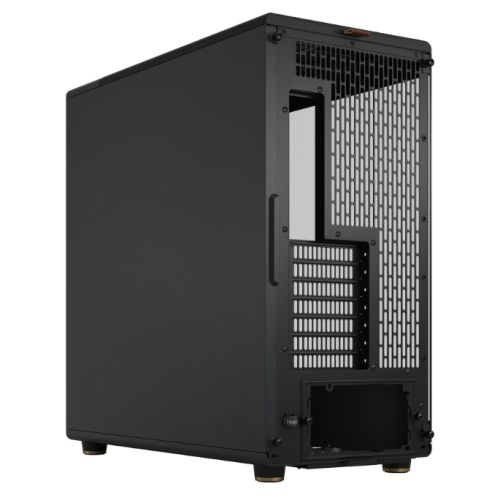

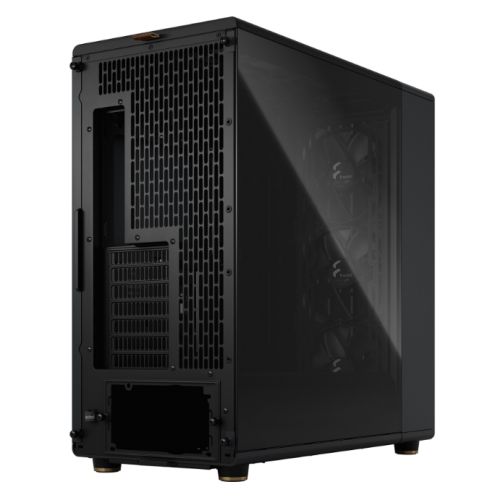

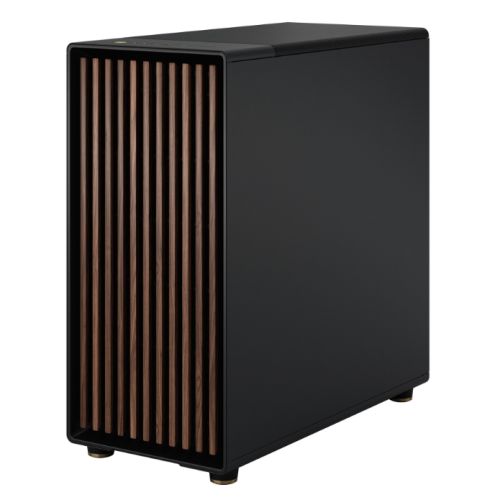

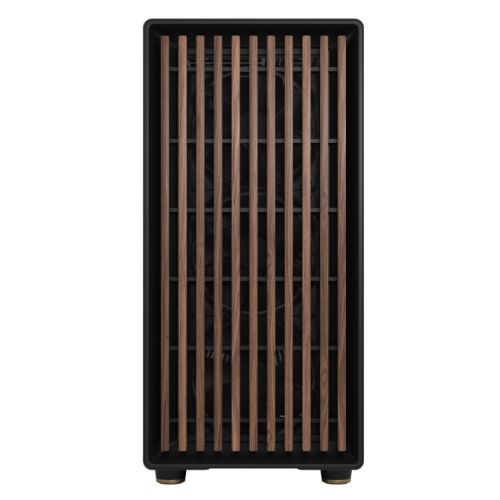

Fractal Design North XL Charcoal Black (TG Dark) Case w/ Dark Tint Glass Window, E-ATX, 3 PWM Fans, USB-C, Walnut Front
+ click images to enlarge
Stock Code
CAA-FRNORXLDTG
Manufacturer
Manufacturer Code
FD-C-NOR1X-02
EAN Number
7340172706540
Out of Stock: ETA 11/12/2024
You must be logged in to view pricing and place orders
Form Factor
E-ATX
Power Supply Wattage
No PSU
Motherboard Support
E-ATX (330 mm), ATX, Micro ATX, Mini ITX

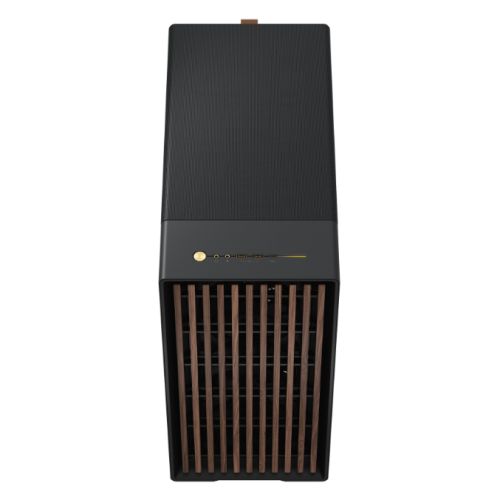

Connectors / Controls
1 x USB 3.1 Gen2 Type-C
2 x USB 3.0
Audio & Mic
2 x USB 3.0
Audio & Mic

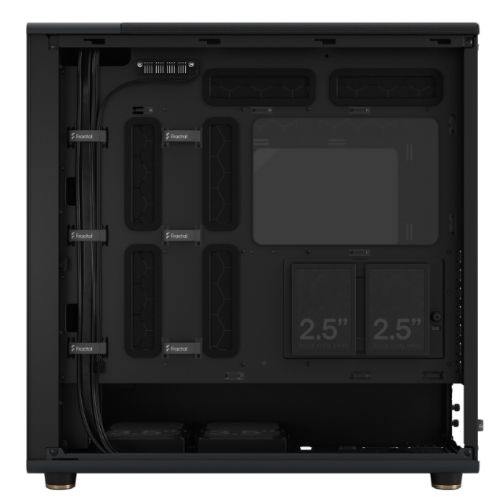

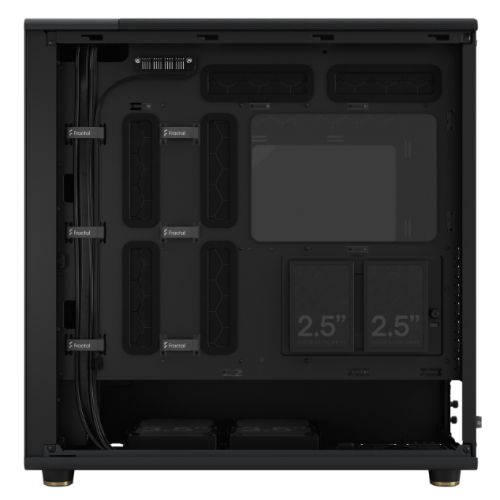

Drive Bays
Dedicated 2.5" drive mounts: 2
Combined 3.5/2.5" drive mounts: 2 (included)
Combined 3.5/2.5" drive mounts: 2 (included)
Expansion Slots
7 expansion slots
Cooling System
Included Fans:
Front: 3 x Aspect 140mm PWM fans
Fan Mounts:
Front: 3 x 120 / 3 x 140 mm
Top: 3 x 120 / 2 x 140 / 2 x 180 mm
Rear: 1 x 120 / 140 mm
Side Bracket: None
Front: 3 x Aspect 140mm PWM fans
Fan Mounts:
Front: 3 x 120 / 3 x 140 mm
Top: 3 x 120 / 2 x 140 / 2 x 180 mm
Rear: 1 x 120 / 140 mm
Side Bracket: None
Radiator options:
Front: Up to 420 mm
Top: Up to 360 mm
Rear: Up to 140 mm*
Bottom: N/A
*If you’re using a rear radiator the fan bracket can only be slotted into the bottom position
Colour
White
Material

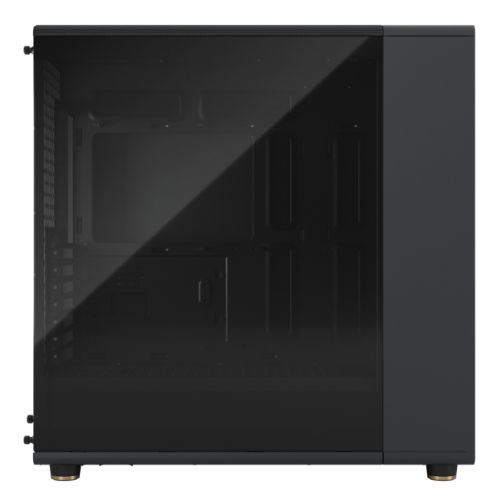

Left side panel: Tempered Glass, 3 mm

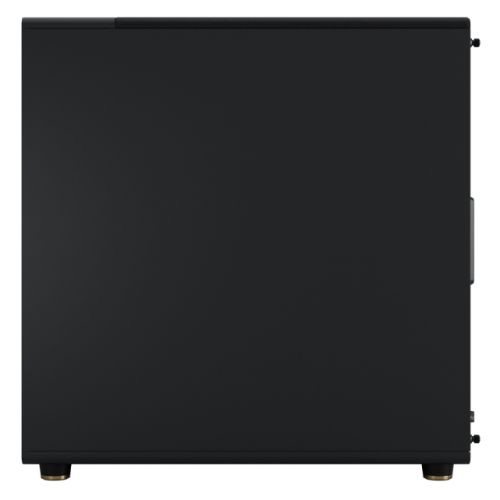

Right side panel: Steel
Right side panel: Steel
Compatibility
GPU max length:
413 mm with front fan mounted
380 mm with 420/360 mm front mounted radiator
CPU cooler max height:
185 mm
PSU max length:
1 HDD Tray: 290 mm
2 HDD Trays: 175 mm
413 mm with front fan mounted
380 mm with 420/360 mm front mounted radiator
CPU cooler max height:
185 mm
PSU max length:
1 HDD Tray: 290 mm
2 HDD Trays: 175 mm
Weight/Dimensions
9.5 kg
(LxWxH) 503 x 240 x 509 mm
w/o feet/protrusions/screws: 490 x 240 x 490 mm
(LxWxH) 503 x 240 x 509 mm
w/o feet/protrusions/screws: 490 x 240 x 490 mm
Additional Features
See Overview
Accessories
Accessory Box
User Manual
User Manual
Package Weight
11.6000 kg
Warranty
2 Years
Full Box Quantity
1
Manufacturer Link
