PCs / Servers > Barebone PCs

Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM, Storage or O/S
+ click images to enlarge


Special Offer
Stock Code
PCAS-JUPITERX300
Manufacturer
ASROCK
Manufacturer Code
90BXG3Z01-A20GA0F
EAN Number
4710483942853
Printable Version
4 Available
You must be logged in to view pricing and place orders
Tower / Small Form Factor
Small Form Factor
Chassis
Asrock Jupiter Mini Desktop
Processor
None
Processor Details
Supports AMD AM4 Socket 65W APUs
Chipset
AMD X300
Graphics
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
Memory
None
Memory Details
2 x SO-DIMM DDR4
Max. 64GB (non-ECC)
Cezanne/Renoir APU – DDR4-3200MHz
Picasso/Ryzen APU - DDR4-2933MHz
Hard Drive
None
SSD Drive
None
Optical Drive
None
Supported Drives
1 x SATA 6Gb 2.5" 7mm/9.5mm Hard Drive
M.2 2280 PCIe Gen3 x4 & SATA 6Gb
Operating System
No O/S

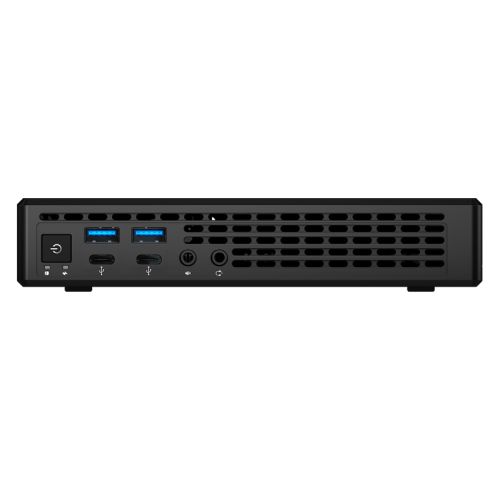

Front I/O
2 x USB 3.1 Gen1 Type-C
2 x USB 3.1 Gen1 Type-A
1 x Head Phone with Mic Jack
1 x Mic-In

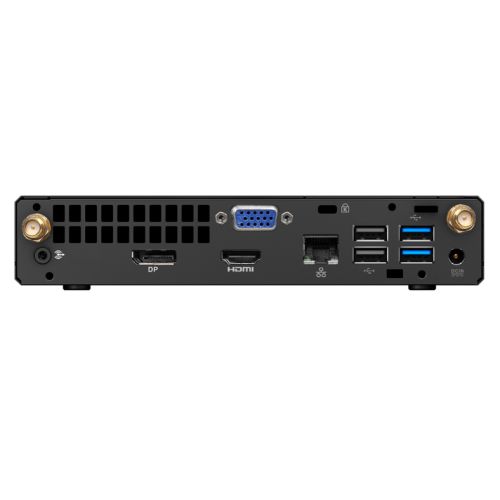

Back I/O
1 x VGA
1 x HDMI
1 x DisplayPort
2 x USB 3.1 Gen1 Type-A
2 x USB 2.0
1 x RJ45
LAN
1 x RJ45 Gigabit LAN
Realtek RTL8111GN
Wireless
1 x M.2 (2230) Key-E Slot (module sold separately)
Sound
1 x 2W Speaker
Realtek ALC233
Expansion
1 x 4-Pin Fan Connector
1 x DC-In Jack (Supports 19V Power Adapters)
1 x Internal Speaker Header
1 x 2-Pin Chassis Intrusion Header
Power Unit
90W/19V Adapter
Keyboard and Mouse
No
Dimensions
Motherboard: 170 x 170 (Proprietary)
Barebone: 178 x 178 x 34 mm (1.0L)
Additional Features
Integrated cooling solution
Copper based heatsink
High efficiency blower
Kensington lock
Key lock
VESA: 75 x 75mm / 100 x 100 mm
Chassis Intrusion

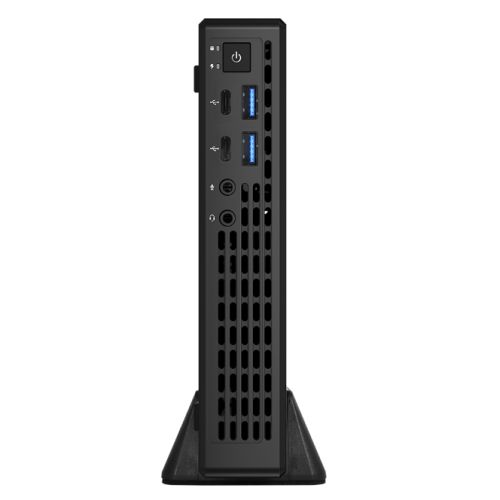

Vertical stand included
Package Weight
2.1500 kg
Package Type
Retail
Warranty
2 Year Replacement Warranty
Full Box Quantity
4
Manufacturer Link
Click here for more details from the manufacturer
