Components > Power Supplies

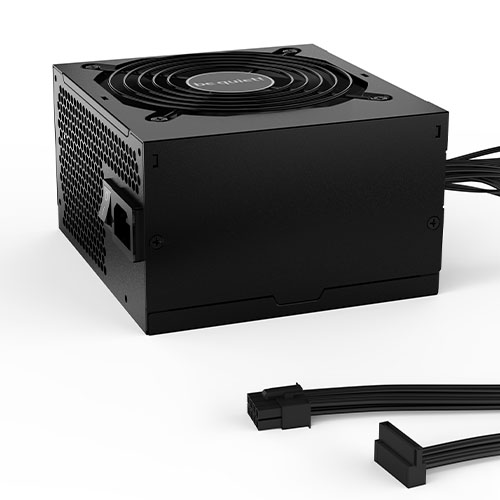

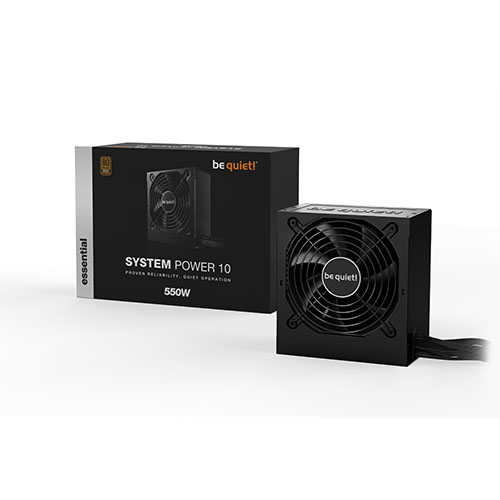

Be Quiet! 550W System Power 10 PSU, 80+ Bronze, Fully Wired, Strong 12V Rail, Temp. Controlled Fan

+ click images to enlarge

Stock Code

PSU-550BQSP10

Manufacturer

BEQUIET

Manufacturer Code

BN327

EAN Number

4260052189078

Printable Version

142 Available

You must be logged in to view pricing and place orders

Form Factor

ATX

Series

Be Quiet! System Power 10

Wattage

550 W

Modular

Fully Wired

Compatibility

ATX 12V v2.52
EPS 12V v2.92

Connectors

1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P4 (CPU)
2 x PCI-e 6+2-pin (GPU)
1 x PATA
6 x SATA

Rail Design

Single strong 12V-rail

AC Input

200-240 Vac

PFC

Active PFC

Fan Type

Temperature-controlled 120mm quality fan

Fan Bearing

Ball Bearing

Noise

20% load: 8.6 dB(A)
50% load: 9.4 dB(A)
100% load: 25.7 dB(A)

80+ Certification

80+ Bronze

Efficiency

230V, 20% load: 87.4%
230V, 50% load: 89.1%
230V, 100% load: 85.7%

MTBF

100,000 hours

Protection

OCP (over current protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
SIP (Surge & Inrush Protection)

Additional Features

See Overview / Video

Package Contents

Screws
Manual

Weight/Dimensions

1.83 kg
(LxWxD) 150 x 140 x 86 mm

Package Weight

2.5000 kg

Warranty

5 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
