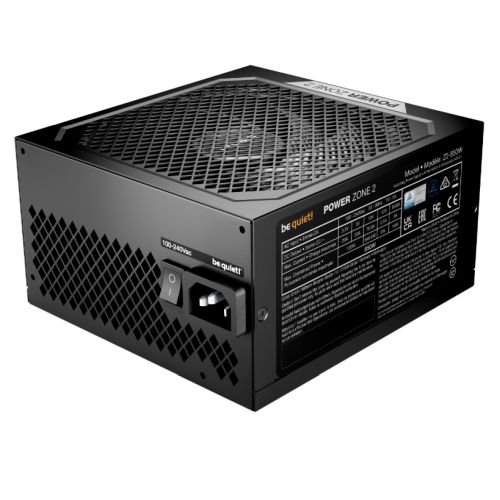

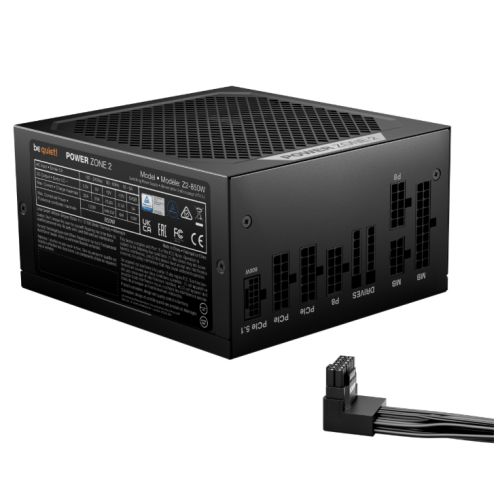

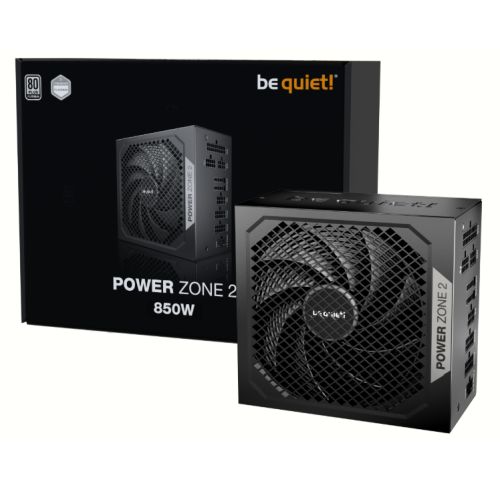

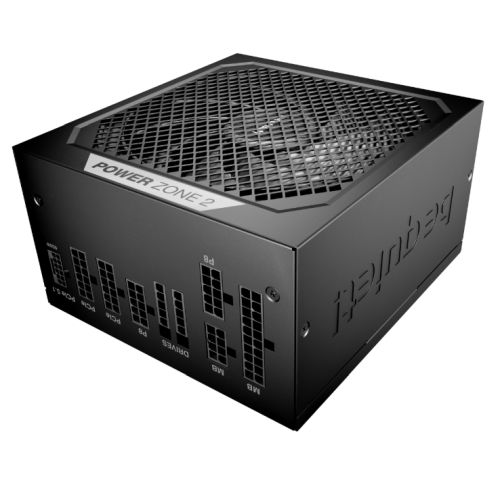

Be Quiet! 850W Power Zone 2 PSU, Fully Modular, 80+ Platinum, Semi-Passive Zero-RPM Cooling, ATX 3.1, PCIe 5.1

+ click images to enlarge

Stock Code

PSU-850BQPZ2

Manufacturer

BEQUIET

Manufacturer Code

BP007

EAN Number

4260052191378

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Form Factor

ATX

Series

Be Quiet! Power Zone 2

Wattage

850 W

Modular

Fully Modular

Compatibility

ATX 3.1
EPS 12V v2.92
PCIe 5.1

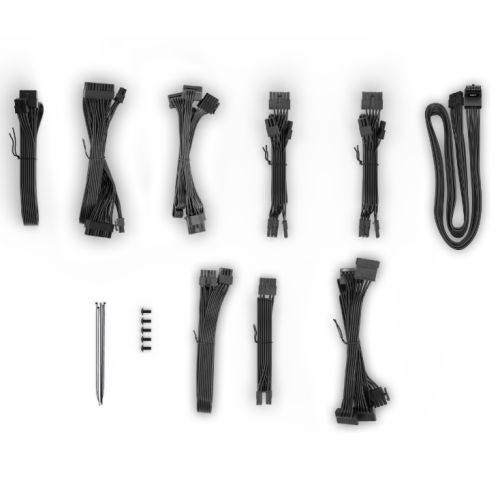

Connectors

1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P8 (CPU)
1 x P4 (CPU)
1 x 12VHPWR cables
3 x PCI-e 6+2-pin (GPU)
7 x SATA
1 x PATA

Rail Design

One massive high-performance 12V-rail

AC Input

100-240 Vac

Fan Type

140mm Pure Wings 3 Fan

Fan Bearing

Rifle Bearing

Noise

dB(A) at 10% load: 6.5
dB(A) at 20% load: 6.5
dB(A) at 50% load: 6.5
dB(A) at 100% load: 24.9

80+ Certification

80+ Platinum

Efficiency

80 PLUS Platinum and Cybenetics Platinum

230V, 2% load: 68.3%
230V, 10% load: 89.9%
230V, 20% load: 93%
230V, 50% load: 94.1%
230V, 100% load: 92.3%

MTBF

>100,000 hours

Protection

OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush protection)

Additional Features

Semi-passive zero-RPM cooling
Fan runs on for 2-5 minutes to avoid frequent starting noise
90° angled 12V-2x6 connector
LLC technology

Package Contents

PSU
Screws
Cable ties
User manual languages

Weight/Dimensions

(LxWxH) 160 x 150 x 86 mm

Package Weight

2.6000 kg

Warranty

10 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
