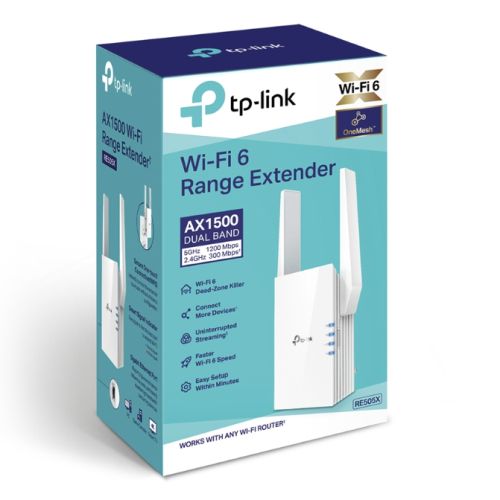

TP-LINK (RE505X) AX1500 (300+1200) Dual Band Wall-Plug Wi-Fi 6 Range Extender, 1 x GB LAN, AP Mode

+ click images to enlarge

Stock Code

RE-AX1500TPWALLPLUG

Manufacturer

TP-LINK

Manufacturer Code

RE505X

EAN Number

6935364089535

Printable Version

6 Available

You must be logged in to view pricing and place orders

Primary Function

Range Extender

Bands

Dual Band

Wi-Fi Rating

AX1500

Max Single Band Wi-Fi Rate

1200 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit Ethernet Port

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Antenna(s)

2 External Antennas

Button(s)

WPS Button, Reset Button

Power Supply

Wall plug

Power Consumption

10W

Dimensions

74.0 x 46 x 124.8 mm

Weatherproof

Frequency

2.4GHz: 300 Mpbs
5GHz: 1200 Mbps

Reception Sensitivity

5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm

Wireless Modes

Range Extender / Access Point Mode

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Security

64/128-bit WEP, WPA/WPA-PSK2 encryptions

Additional Features

See Overview

Package Contents

Wi-Fi Range Extender RE505X
Quick Installation Guide

Package Type

Retail
