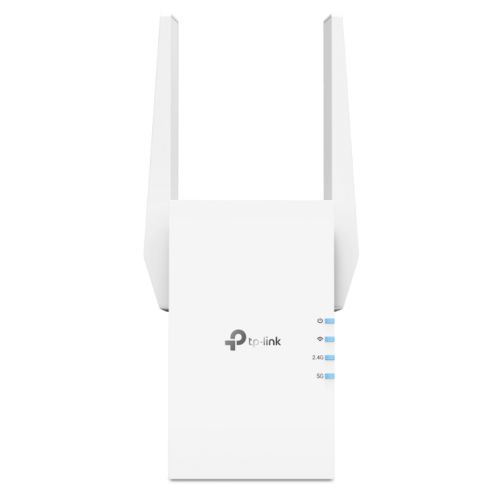

TP-LINK (RE705X) AX3000 Dual Band Mesh Wall-Plug Wi-Fi 6 Range Extender, External Antennas, EasyMesh Compatible, AP Mode, App Control

+ click images to enlarge

Stock Code

RE-AX3000TPWALLPLUGEXT

Manufacturer

TP-LINK

Manufacturer Code

RE705X

EAN Number

4897098683125

Printable Version

6 Available

You must be logged in to view pricing and place orders

Primary Function

Range Extender

Bands

Dual Band

Wi-Fi Rating

AX3000

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit Ethernet Port

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

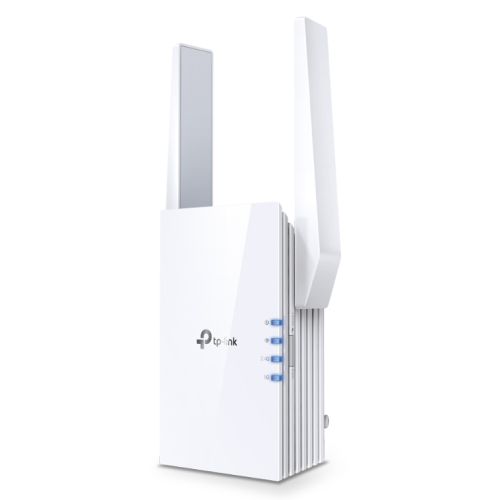

Antenna(s)

2 External Antennas

Button(s)

WPS Button, Reset Button

Power Supply

Wall Plug
100-240V~50/60Hz

Power Consumption

12.6W

Dimensions

(WxDxH) 97 x 46 x 158 mm

Weatherproof

Frequency

2.4GHz: 574 Mpbs
5GHz: 2402 Mbps

Reception Sensitivity

5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -61dBm
11ax HE160 MCS11: -59dBm

2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -95dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm

Wireless Modes

Range Extender / Access Point

Wireless Functions

Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage

Additional Features

WEP, WPA, WPA2, WPA3

Environment

Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

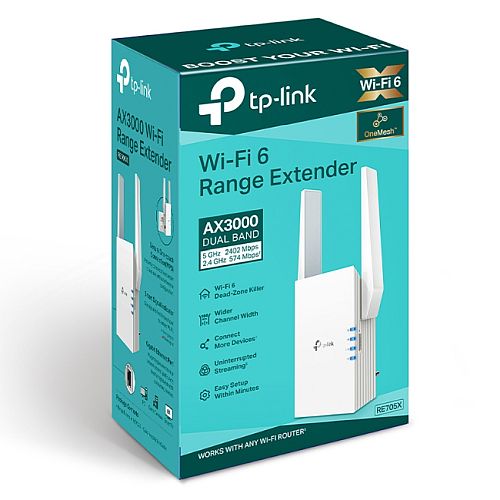

Package Contents

Wi-Fi Range Extender RE705X
Quick Installation Guide

Package Type

Retail

Package Weight

0.4600 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
