Networking > Routers / Mesh Systems

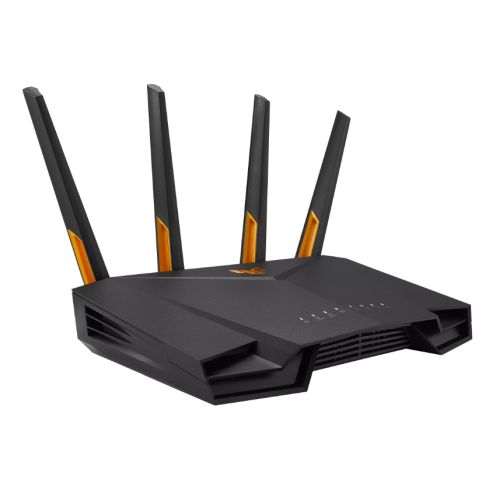

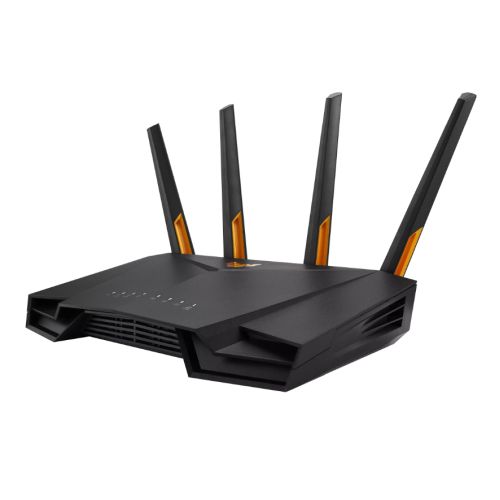

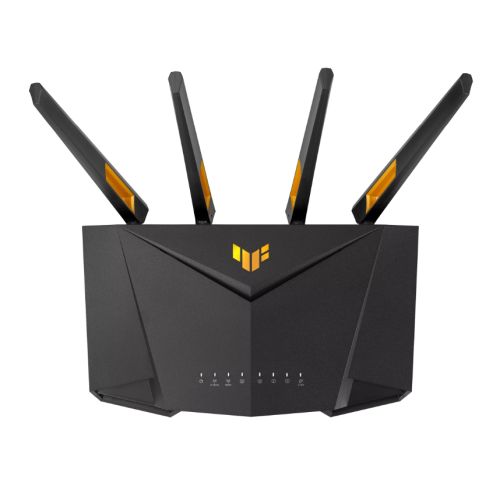

Asus (TUF-AX4200) TUF Gaming AX4200 Dual Band Wi-Fi 6 Gaming Router, Mobile Game Mode, 3 Steps Port Forwarding, 2.5G LAN, AiMesh, AiProtection Pro

+ click images to enlarge

Stock Code

ROU-AX4200AUDU-GB-TUF

Manufacturer

ASUS

Manufacturer Code

90IG07Q0-MU9100

EAN Number

4711081773177

Printable Version

2 Available

You must be logged in to view pricing and place orders

Type

Cable Router

Connectivity

Wireless

Wi-Fi Rating

AX4200

Max Single Band Wi-Fi Rate

3603 Mbps

Max Wired Transfer Rate

2.5 Gbps

Bands

Dual Band

Signal Rate

2.4GHz: up to 574 Mbps
5 GHz: up to 3603 Mbps

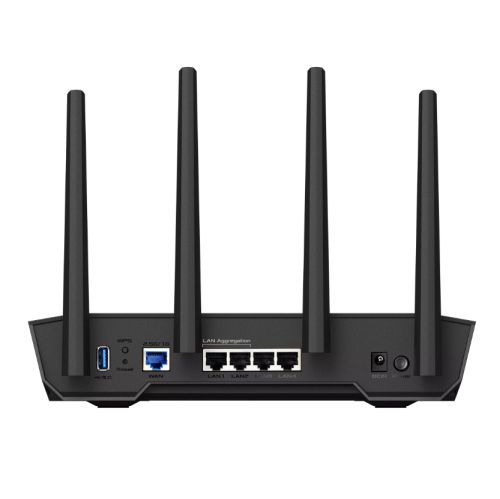

Interface(s)

1 x RJ45 for 2.5 Gigabits BaseT for WAN
4 x RJ45 for Gigabits BaseT for LAN
1 x USB 3.2 Gen1

Standards

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Frequency

2.4GHz & 5 GHz

Button(s)

WPS Button, Reset Button, Power Button

Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2.5 A current

Antenna(s)

4 x fixed external antennas

Wireless Functions

IPv6
UTF-8 SSID
Guest Network
Max Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming

Security

Wi-Fi Encryption:
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

Parental Control:
Yes
Parental Control Customized Internet schedule

AiProtection Pro:
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

DHCP

DHCP Server

Port/NAT Forwarding

Yes
Max port forwarding rule : 64

VPN Support

VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Management

ASUS Router APP

Dynamic DNS

Yes

USB Application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Additional Features

See Overview

Package Contents

TUF Gaming AX4200 Dual Band WiFi 6 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Package Type

Retail

Package Weight

1.6000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link
