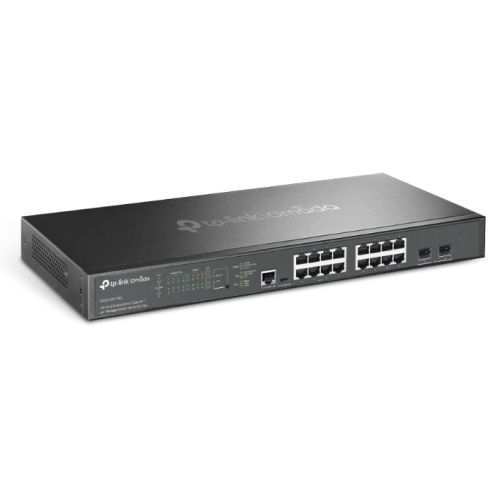

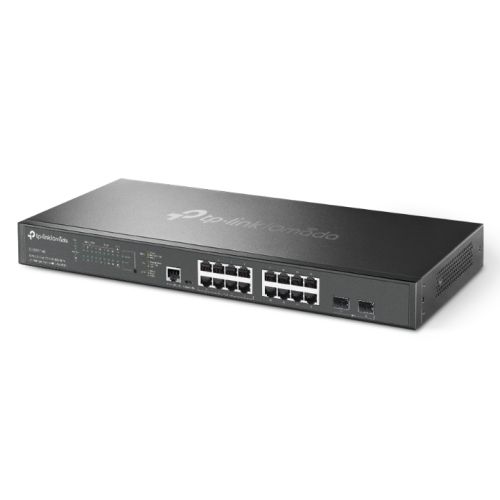

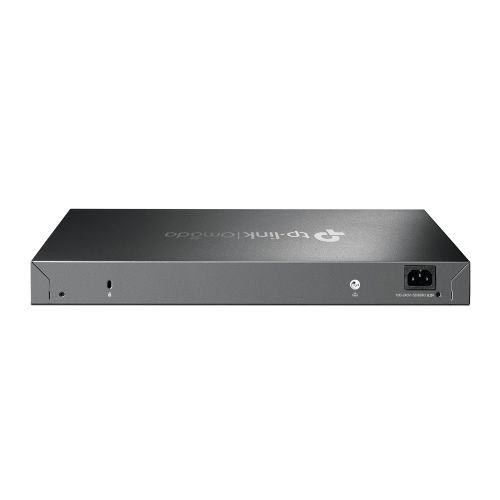

TP-LINK (SG3218XP-M2) Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+, Rackmountable

+ click images to enlarge

Stock Code

SWI-16TPOMAL2XP-M2

Manufacturer

TP-LINK

Manufacturer Code

SG3218XP-M2

EAN Number

4897098689752

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Rackmountable

Yes

Managed

Yes

Number of Ports

Max RJ45 Transfer Rate

2.5 Gbps

Interface(s)

16 x 2.5 Gbps RJ45 Ports
2 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port

PoE Ports (RJ45)

Standard: 802.3at/af compliant
PoE+ Ports(802.3at PoE): 8 Ports, up to 30 W per port
Power Budget: 240 W

Switching Capacity

120 Gbps

Power Supply

100-240 V AC~50/60 Hz
Max Power Consumption: 299.4 W (110V/60Hz)(with 240 W PD connected)

Dimensions

(WxDxH) 440 x 180 x 44 mm

Mac Address Table

16 K

Packet Forwarding Rate

89.28 Mpps

Jumbo Frame

9 KB

Additional Features

Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

Quality of Service

8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

Layer Features

L3 Features
32 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay

L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring

L2 Multicast
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Voice VLAN

Access Control

Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN

Security

IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control

Management

Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Management Features:
Web-based GUI
CLI through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Environment

Operating Temperature: 0–50°C (32–122°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

SG3218XP-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet

Package Type

Retail

Package Weight

3.1900 kg

Warranty

Limited Lifetime
