TP-LINK (SG2428LP) Omada 28-Port Gigabit Smart Switch with 16-Port PoE+, 4 GB SFP Slots, Rackmountable

+ click images to enlarge

Stock Code

SWI-28TPOMASMARTPOE-GB

Manufacturer

TP-LINK

Manufacturer Code

SG2428LP

EAN Number

8885020620849

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Rackmountable

Yes

Managed

Smart

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

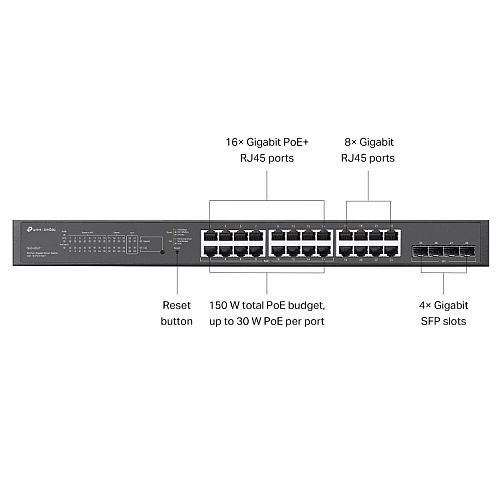

16 x Gigabit PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
8 x Gigabit non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x Gigabit SFP Slots

PoE Ports (RJ45)

Standard: 802.3at/af compliant
PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 150 W

Switching Capacity

56 Gbps

Power Supply

100-240V AC, 50/60Hz

Dimensions

440 x 220 x 44 mm

Mac Address Table

Packet Forwarding Rate

41.66 Mpps

Jumbo Frame

9KB

Additional Features

Fanless design for quiet operation
Durable metal casing
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

Quality of Service

802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port/Flow-based Rating Limit
Smoother Performance
Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

Layer Features

L2 and L2+:
16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)

VLAN

VLAN Group: Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN

Access Control

Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding

Security

IP-MAC-Port Binding
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control

Management

Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Management Features:
Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

Environment

Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

SG2428LP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

Package Type

Retail

Package Weight

3.9800 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
