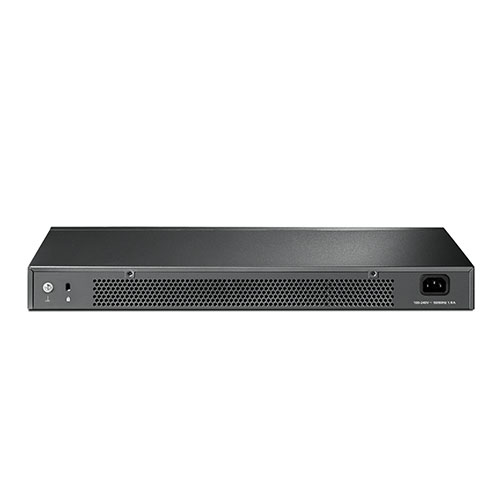

TP-LINK (TL-SG3452X) JetStream 48-Port Gigabit L2+ Managed Switch with 10GE 4 SFP+ Slots, L2/L3/L4 QoS, Fanless, Rackmountable

+ click images to enlarge

Stock Code

SWI-48TPJETL2-10GB

Manufacturer

TP-LINK

Manufacturer Code

SG3452X

EAN Number

6935364006488

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Rackmountable

Yes

Managed

Yes

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

48 x 10/100/1000 Mbps RJ45 Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port

Switching Capacity

176 Gbps

Power Supply

Power Supply
100-240 V AC~50/60 Hz

Max Power Consumption
32.72 W (110V/60Hz)

Dimensions

(WxDxH) 440 x 220 x 44 mm

Mac Address Table

16 K

Packet Forwarding Rate

130.9 Mpps

Jumbo Frame

9 KB

Additional Features

Supports Omada Hardware/Software/Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)

Quality of Service

L2/L3/L4 QoS

Layer Features

L2 and L2+ Features
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
Port based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both

VLAN

VLAN Group
Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN

Access Control

Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN

Security

IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control

Management

Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Environment

Operating Temperature: 0–45°C (32–113°F);
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

TL-SG3452X Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet

Package Type

Retail

Package Weight

3.9500 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
