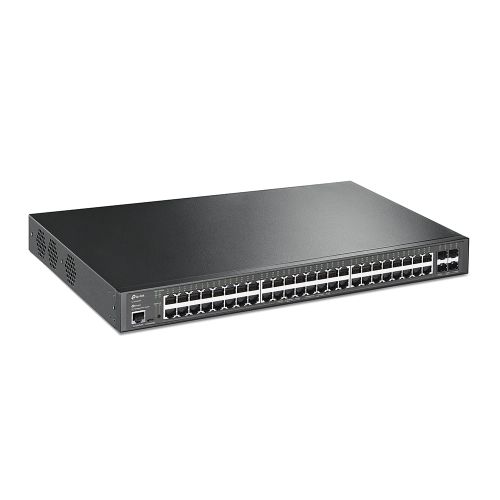

TP-LINK (TL-SG3452XP) JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+, Rackmountable

+ click images to enlarge

Stock Code

SWI-48TPJETL2XPOE-GB

Manufacturer

TP-LINK

Manufacturer Code

SG3452XP

EAN Number

6935364006501

Printable Version

9 Available

You must be logged in to view pricing and place orders

Rackmountable

Yes

Managed

Yes

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

48 x 10/100/1000 Mbps RJ45 PoE+ Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port

PoE Ports (RJ45)

Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports, up to 30 W per port
Power Budget: 500 W

Switching Capacity

176 Gbps

Power Supply

100-240 V AC~50/60 Hz

Consumption:
49.19 W (110V/60Hz) (no PD device connected)
635.7 W (110V/60Hz) (with 500 W PD device connected)

Dimensions

(WxDxH) 440 x 330 x 44 mm

Mac Address Table

16 K

Packet Forwarding Rate

130.9 Mpps

Jumbo Frame

9 KB

Additional Features

Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

Quality of Service

8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Contro
Smoother Performance
Action for Flows

Layer Features

L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring

L2 Multicast
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN

Access Control

Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN

Security

IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control

Management

Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Management Features:
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Environment

Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

TL-SG3452XP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet

Package Type

Retail

Package Weight

6.6000 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
