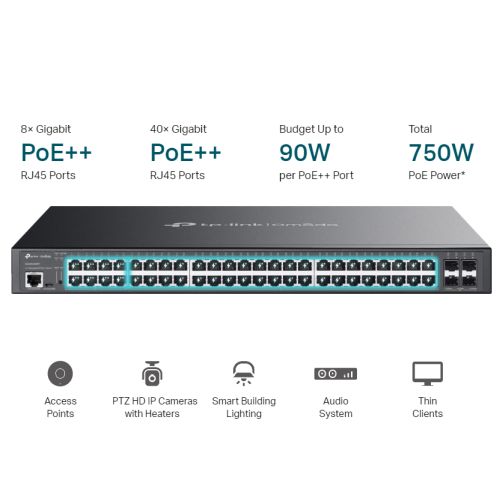

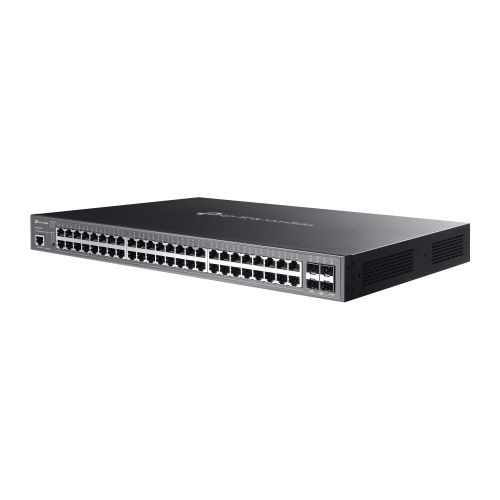

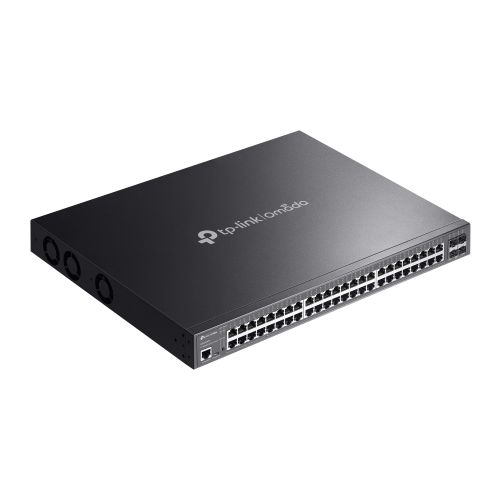

TP-LINK (SG3452XMPP) Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++, Rackmountable

+ click images to enlarge

Stock Code

SWI-48TPOMAL2XPOE-GB

Manufacturer

TP-LINK

Manufacturer Code

SG3452XMPP

EAN Number

8885020620887

Printable Version

2 Available

You must be logged in to view pricing and place orders

Rackmountable

Yes

Managed

Yes

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

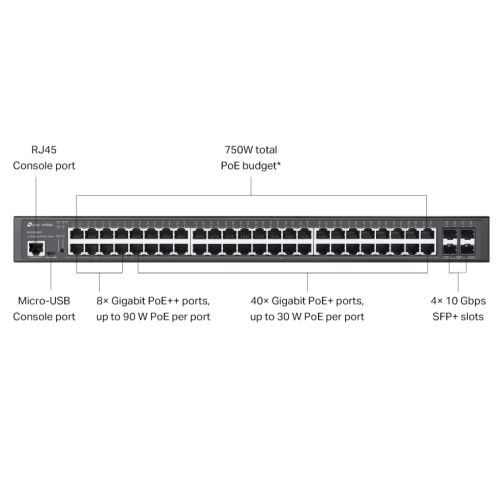

48 x 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+)
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port

PoE Ports (RJ45)

Standard: 802.3at/af/bt compliant
PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)
PoE+ Ports: Ports 9~48 (up to 30 W PoE Output per Port)
Power Budget: 750 W

Switching Capacity

176 Gbps

Power Supply

100-240 V AC~50/60 Hz
Max Power Consumption: 913.4 W (110V/60Hz) ( with 750 W PD connected)

Dimensions

(WxDxH) 440 x 330 x 44 mm

Mac Address Table

16 K

Packet Forwarding Rate

130.9 Mpps

Jumbo Frame

9 KB

Additional Features

Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

ISP Features:
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
PPPoE ID Insertion
ERPS
802.3ah Ethernet Link OAM
DDM
sFlow

Quality of Service

8 priority queues
802.1p CoS/DSCP priority
Bandwidth Control: Port/Flow-based Rating Limiting
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

Layer Features

L2 and L2+ Features
128 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 48 IPv4/IPv6 Static Routes
Static ARP: 128 static entries
512 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring

L2 Multicast
Supports 1000 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP Authentication
Multicast VLAN Registration (MVR)
MLD Snooping
Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

VLAN Group: Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN: VLAN Mapping, VLAN Replace
Voice VLAN

Access Control

Time-based ACL
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
Combined ACL
Packet Content ACL
IPv6 ACL
Policy: Mirroring, Redirect, Rate Limit, QoS Remark
ACL applies to Port/VLAN

Security

IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
DHCP Filter
Static/Dynamic Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control

Management

Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Management Features:
Web-based GUI
CLI through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

Environment

Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

SG3452XMPP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet

Package Type

Retail

Package Weight

6.9000 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
