Networking > Switches

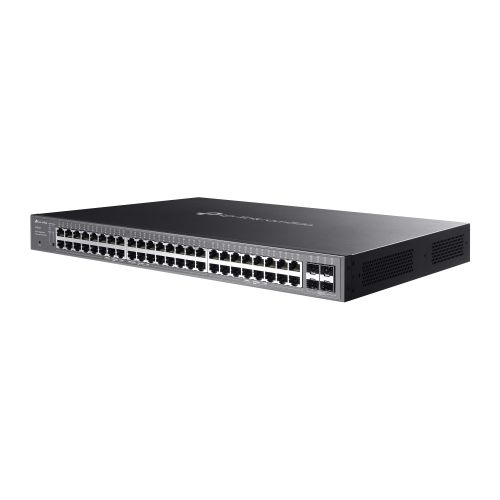

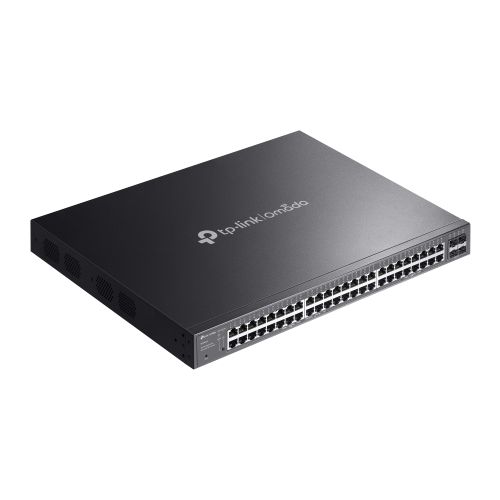

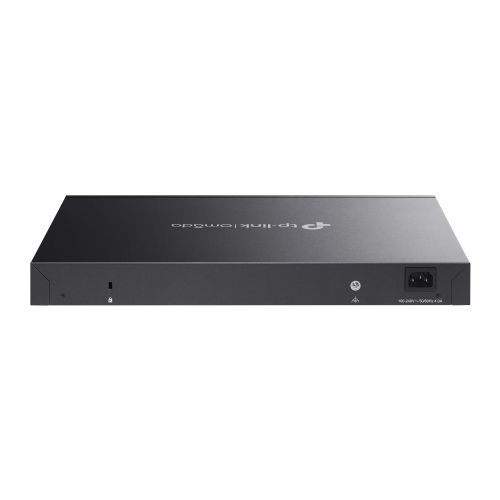

TP-LINK (SG2452LP) Omada 52-Port Gigabit Smart Switch w/ 32-Port PoE+, Centralized Management, Rackmountable
+ click images to enlarge
Stock Code
SWI-52TPOMAL2POE-GB
Manufacturer
Manufacturer Code
SG2452LP
EAN Number
8885020620825
3 Available
You must be logged in to view pricing and place orders
Rackmountable
Yes
Managed
Smart
Number of Ports
52
Max RJ45 Transfer Rate
10/100/1000 Mbps

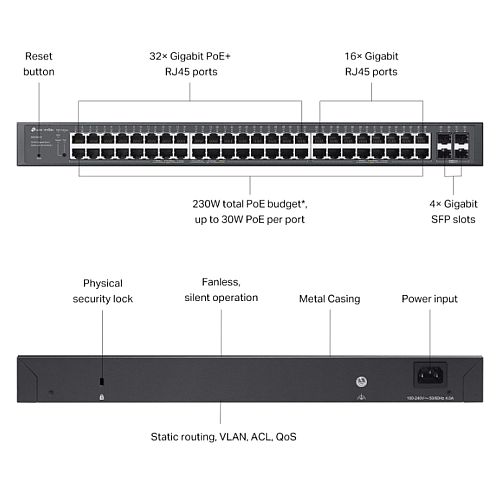

Interface(s)
32 x GB PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
16 x GB non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x GB SFP Slots
16 x GB non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x GB SFP Slots
PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 230 W
PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 230 W
Switching Capacity
104 Gbps
Power Supply
100-240 V AC~50/60 Hz
Dimensions
440 x 330 x 44 mm
Mac Address Table
16 K
Packet Forwarding Rate
77.37 Mpps
Jumbo Frame
9 KB
Additional Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port/Flow-based Rating Limit
Smoother Performance
Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port/Flow-based Rating Limit
Smoother Performance
Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
Layer Features
L2 and L2+:
16 IP Interfaces
Static Routing
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
DLDP
802.1ab LLDP/ LLDP-MED
L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
MVR
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)
16 IP Interfaces
Static Routing
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
DLDP
802.1ab LLDP/ LLDP-MED
L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
MVR
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)
VLAN
VLAN Group: Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN
Access Control
Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding
Security
IP-MAC-Port Binding
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
Management
Omada App, Centralized Management & Cloud Access :
Requires Omada Hardware, Cloud-Based or Software Controller
Zero-Touch Provisioning :
Requires Omada Cloud-Based Controller
Requires Omada Hardware, Cloud-Based or Software Controller
Zero-Touch Provisioning :
Requires Omada Cloud-Based Controller
Management Features :
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
Environment
Operating Temperature:0°C to 40 °C
Storage Temperature: -40 °C to 70 °C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Storage Temperature: -40 °C to 70 °C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents
SG2452LP
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
Package Type
Retail
Package Weight
6.4700 kg
Warranty
Limited Lifetime
Full Box Quantity
3
