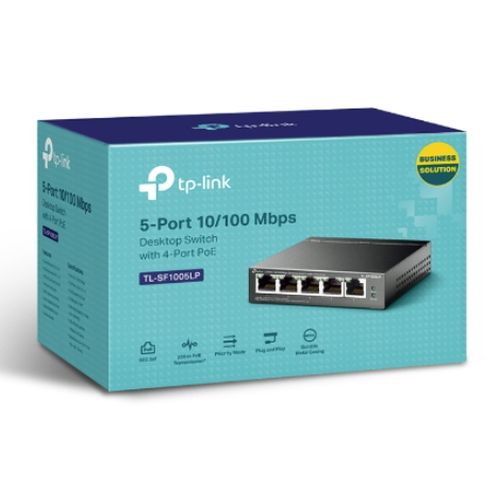

TP-LINK (TL-SF1005LP) 5-Port 10/100 Unmanaged Desktop Switch, 4-Port PoE, Intelligent Power, Steel Case

+ click images to enlarge

Stock Code

SWI-5TPLPOE

Manufacturer

TP-LINK

Manufacturer Code

TL-SF1005LP

EAN Number

6935364052799

Printable Version

3 Available

You must be logged in to view pricing and place orders

Rackmountable

Managed

Number of Ports

Max RJ45 Transfer Rate

10/100 Mbps

Interface(s)

5 X 10/100 Mbps RJ45 (1 - 4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX

PoE Ports (RJ45)

Standard: 802.3 af compliant
PoE Ports: Ports 1–4
Power Supply: 41 W

Switching Capacity

1 Gbps

Power Supply

External Power Adapter (Output: 53.5 V DC / 0.81 A)

Consumption:
1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)

Dimensions

100 x 98 x 25 mm

Transfer Method

Store-And-Forward

Mac Address Table

Packet Forwarding Rate

0.744 Mpps

Jumbo Frame

2 KB

Additional Features

Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

Security

Physical Security Lock

Environment

Operating Temperature: 0–40C (32–104F)
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

TL-SF1005LP
Power Adapter
Installation Guide

Package Type

Retail

Package Weight

0.7500 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
