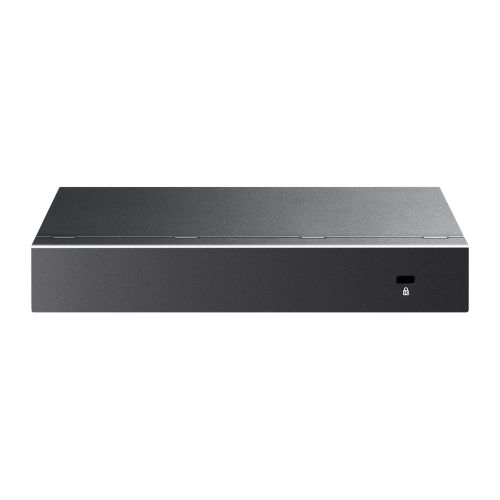

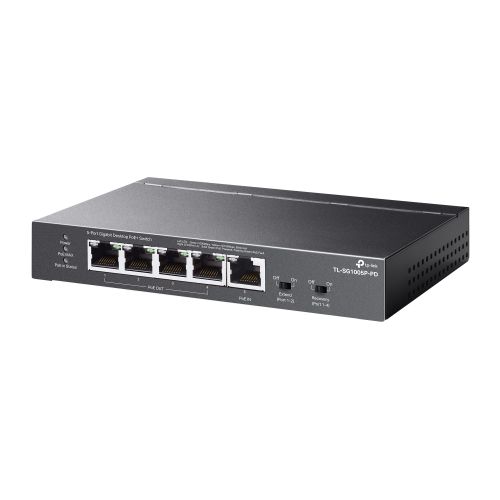

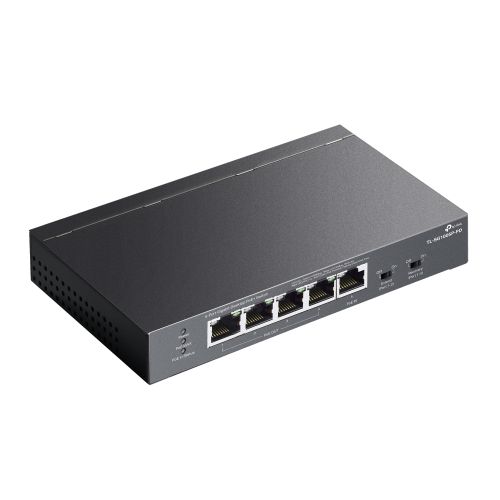

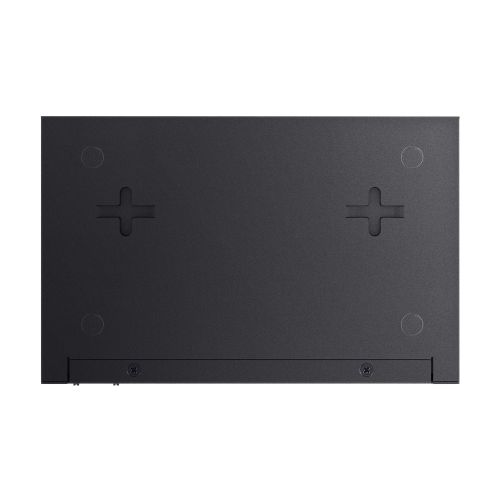

TP-LINK (TL-SG1005P-PD) 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out, Long-Range PoE+

+ click images to enlarge

Stock Code

SWI-5TPSMAPOEPL-GB

Manufacturer

TP-LINK

Manufacturer Code

TL-SG1005P-PD

EAN Number

4895252501124

Printable Version

35 Available

You must be logged in to view pricing and place orders

Rackmountable

Managed

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

5 x 10/100/1000Mbps RJ45
1 x 10/100/1000 Mbps RJ45 PoE In
4 x 10/100/1000 Mbps RJ45 PoE Out
AUTO Negotiation
AUTO MDI/MDIX

PoE Ports (RJ45)

PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
PoE Out Ports: Ports 1-4, compliance with 802.3af/at

PoE Power Budget:
66 W when powered by 802.3bt Type 4 (90 W)
47 W when powered by 802.3bt Type 3 (60 W)
21 W when powered by 802.3at (30 W)
9 W when powered by 802.3af (15.4 W)

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p

Switching Capacity

10 Gbps

Power Supply

Only Powered by PoE Device

Max Power Consumption:
2.68 W (90W PoE In, with no PD connected)
68.59 W (90W PoE In, with 66 W PD connected)

Dimensions

(WxDxH) 158 x 101 x 25 mm

Transfer Method

Store-And-Forward

Mac Address Table

Packet Forwarding Rate

7.44 Mpps

Additional Features

Extend Mode Button (Ports 1–2, Up to 250m PoE power and data transmission)
PoE Auto Recovery (Ports 1-4)
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Fanless

Management

Unmanaged

Environment

Operating Temperature: 30–70°C
Storage Temperature: -40–70°C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

TL-SG1005P-PD
Installation Guide

Package Type

Retail

Package Weight

0.4600 kg

Warranty

Limited Lifetime
