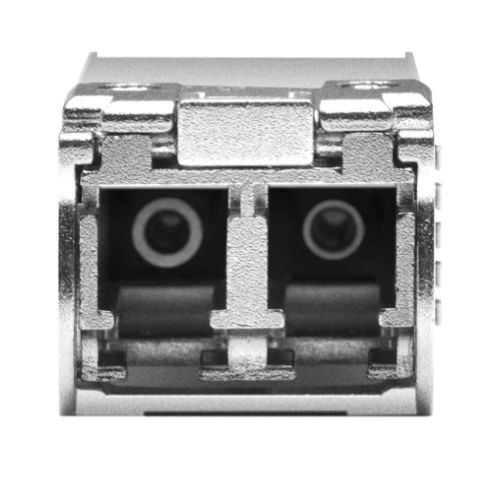

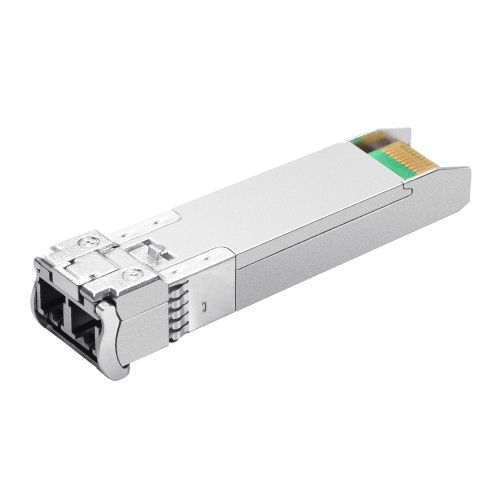

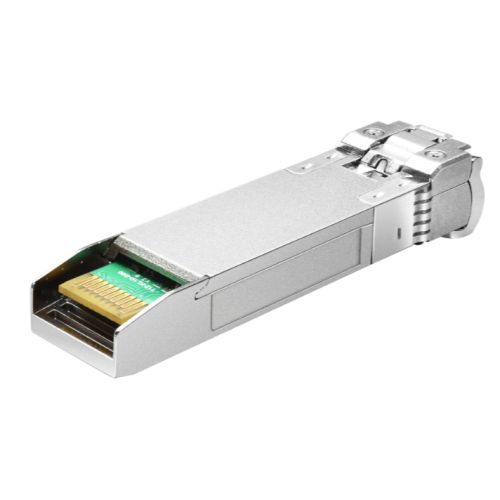

TP-LINK (SM6110-LR) Omada 25GBase-LR SFP28 Single-Mode SFP+/SFP28 LC Transceiver, Hot-Pluggable, DDM Support, 1310 nm
+ click images to enlarge
Stock Code
SWI-SFPMODTP-SM6110-LR
Manufacturer
TP-LINK
Manufacturer Code
SM6110-LR
EAN Number
8885020622362
Printable Version
Out of Stock: Pre-Order Only
You must be logged in to view pricing and place orders
Device Type
SFP+ LC Transceiver
Standards and Protocols
IEEE 802.3ae, 802.3cc
SFF-8402, SFF-8431, SFF-8432, SFF-8472
eCPRI, CPRI
TCP/IP
Cable
Single-mode Fiber
Fiber Type
9/125um Single-Mode
Max. Cable Length
10 km
Data Rate
Dual Rate 25.78 Gbps and 10.31 Gbps
Wave Length
1310 nm
Port Type
Duplex LC/UPC
Power Supply
3.3V
Diagnostic Function
Supports Digital Diagnostic Monitoring (DDM)
Environment
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 90% RH, Non-Condensing
Storage Humidity: 5% to 90% RH, Non-Condensing
Package Contents
SM6110-LR
Installation Guide
Package Type
Retail
Package Weight
0.0600 kg
Warranty
2 Years
Full Box Quantity
30
Manufacturer Link
Click here for more details from the manufacturer
