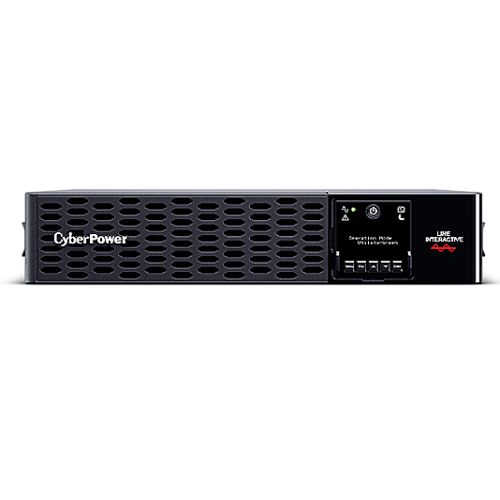

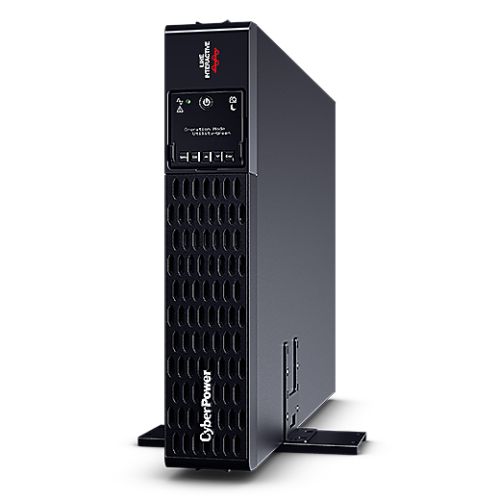

CyberPower XL Smart App 3000VA Line Interactive 2U Rackmountable Professional UPS, 3000W, LCD Display, 8x IEC, AVR Energy Saving, Hot-swappable Batteries, Ext. Battery Module

+ click images to enlarge

Stock Code

UPS3000VAPRRACKCP

Manufacturer

CYBERPOWER

Manufacturer Code

PR3000ERTXL2U

EAN Number

4712856277579

Printable Version

Out of Stock: ETA 24/02/2025

You must be logged in to view pricing and place orders

Type

Rackmountable UPS

UPS Topology

Line-interactive

Maximum Capacity

3000VA / 3000W

Battery Type

Sealed Lead-acid

Typical Protection

Surge Suppression: 2430 Joules
EMI/RFI Filtration
Network Protection RJ45: 1-in, 1-out

Inversion

Pure Sine Wave

Transfer Time

4 ms

Battery Protection

Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal current limiting, circuit breaker

Input Voltage

Nominal Input Voltage: up to 240 Vac
Input Voltage Range 159 ~ 288 Vac
Adjustable Voltage Range: 151 ~ 302 Vac

Output Voltage

220 ± 5% Vac
230 ± 5% Vac
240 ± 5% Vac

Recharge Time

3 hours

Runtime

at Half Load: 7.1 minutes
at Full Load: 1.7 minutes

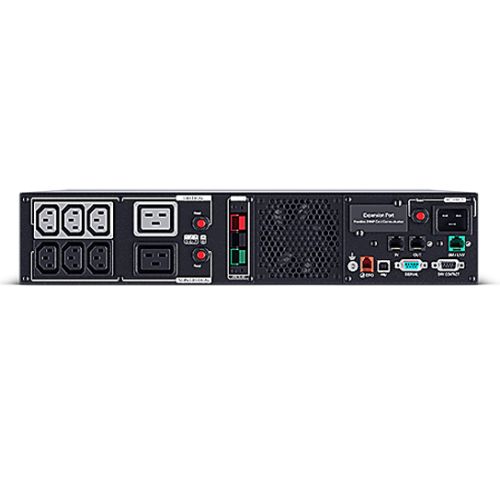

Interfaces

6 x IEC C13
2 x IEC C19
1 x HID Compliant USB Port
1 x Serial Port
RJ45: 1-in, 1-out
BM/ENV Port
EPO/ROO Port
Extended Battery Module Connector Socket

Visual Indicators

LCD Panel:
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & Control:
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication, Language

LED Indicators:
Power On, Line Mode, Battery Mode, UPS Fault, Night Mode

Audible Indicators

Battery Mode, Low Battery, Overload, Overcharge, Overheat

Environment

Operating Temperature: 32 ~ 104°F
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 95 %
Operating Elevation: 0-9,843 feet (0-3,000 meters)
Storage Temperature: 5 ~ 113 °F
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation: 120.8 BTU/hr
Audible Noise at 1.0M from Surface of Unit: 38.5~57.5 dBA

Dimensions

(WxHxD) 560 x 275 x 620 mm

Weight

40.8 kg

Software

PowerPanel Business (Recommended)

Additional Features

See Overview

Accessories

Rackmount Rail
Rackmount Ears
Rail Kit
Screw Kit
Power Cord
USB Cable
Serial Cable
EPO Cable
Users Manual

Package Type

Retail
