CCTV / Security > Surveillance Cameras

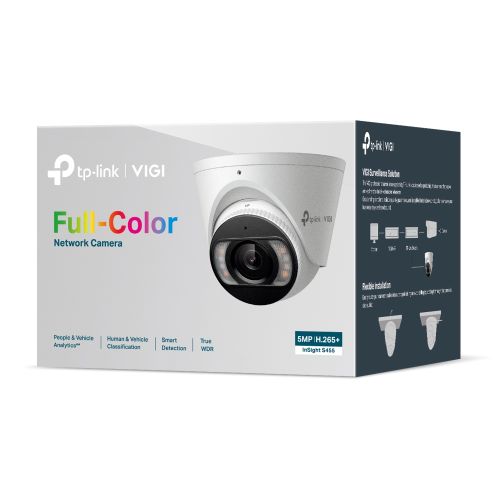

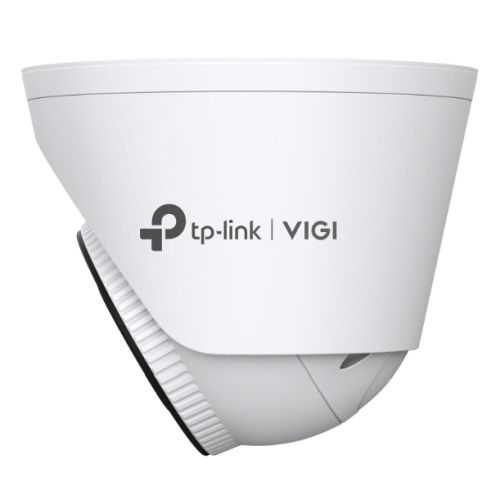

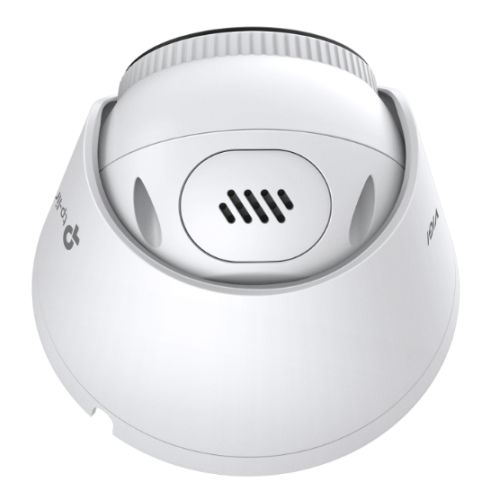

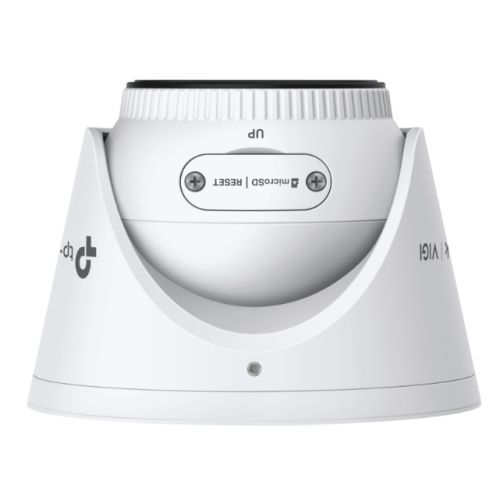

TP-LINK (INSIGHT S455 4MM) 5MP Full Colour Turret Network Camera w/ 4mm Lens, IP67, Smart Detection, People & Vehicle Analytics, H.265+
+ click images to enlarge


Stock Code
WCA-INSIGHTTPS455-4MM
Manufacturer
TP-LINK
Manufacturer Code
INSIGHT S455(4MM)
EAN Number
1210002606301
Printable Version
Out of Stock: call for information
You must be logged in to view pricing and place orders
Suitable for Outdoor
Yes
Wired/Wireless
Wired
Interface(s)
1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
DC Power Port
Built-In Memory Card Slot, Support MicroSD Card, up to 512GB
Image Sensor
1/2.7" Progressive Scan CMOS
Resolution
Main Stream:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,
1280x720

Sub-Stream:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240
Frame Rate
Main Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Lens
Type: Fixed Focal Lens

Focal Length: 4 mm

Aperture: F1.6

Lens Mount: M12*P 0.5

DORI Distance:
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Viewing Angle
Horizontal FOV: 88°
Vertical FOV: 46°
Diagonal FOV: 105.4°
Pan/Tilt Range
Pan: 0° to 360°
Tilt: 0° to 85°
Rotation: 0° to 360°
Day/Night Mechanism
IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
Minimum Illumination
0.005 Lux; 0 Lux with IR/white light
Image Settings
Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software
Audio Features
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
Alarm & Event Management
Smart Event:
Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change

Basic Event:
Motion Detection, Video Tampering Detection, Exception (Illegal Login)

Alarm Linkage:
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Output Notification:
Message Push
Network
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

API: ONVIF Profile S/T/G

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS

Cloud: Yes

ONVIF: Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Management
VIGI App
Power Supply
12V DC +/- 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12 W
Weight/Dimensions
0.48 kg
111 x 111 x 83.7 mm
Environment
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Storage Humidity: 95% or Less (Non-Condensing)
Operating Humidity: 95% or Less (Non-Condensing)
Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Package Weight
0.6900 kg
Warranty
5 Years
Full Box Quantity
18
Manufacturer Link
Click here for more details from the manufacturer
